NCERT Solutions For Class 11 Biology Locomotion and Movement

NCERT Solutions For Class 11 Biology Locomotion and Movement

Topics and Subtopics in NCERT Solutions for Class 11 Biology Chapter 20 Locomotion and Movement:

Section Name Topic Name
20 Locomotion and Movement
20.1 Types of Movement
20.2 Muscle
20.3 Skeletal System
20.4 Joints
20.5 Disorders of Muscular and Skeletal System
20.1 Summary

NCERT Solutions Class 11 BiologyBiology Sample Papers

NCERT TEXTBOOK QUESTIONS FROM SOLVED

1. Draw the diagram of a sarcomere of skeletal muscle showing different regions.
Solution:
NCERT Solutions For Class 11 Biology Locomotion and Movement Q1

2. Define sliding filament theory of muscle contraction.
Solution: According to sliding filament theory of muscle contraction, the actin and myosin filaments slide past each other with the help of cross-bridges to reduce the length of the sarcomeres.

More Resources for CBSE Class 11

3. Describe the important steps in muscle contraction.
Solution: Mechanism of muscle contraction is explainei by sliding filament theory which states that contraction of a muscle fibre takes place by the sliding of the thin filaments over the th’ ck filaments. As a nerve impulse reaches the terminal end of the axon, synaptic vesicles fuse with the axon membrane and release a chemical transmitter, acetylcholine and binds to receptor sites of the motor end plate. When depolarization of the motor end plate reaches a certain level, it creates an action potential. An action potential (impulse) passes from the motor end plate over the sarcolemma and then into the T-tubules and sarcoplasmic reticulum and stimulates the sarcoplasmic reticulum to release calcium ions into the sarcoplasm. The calcium ions bind to troponin causing a change in its shape and position. This in turn alters shape and the position of tropomyosin, to which troponin binds. This shift exposes the active sites on the F-actin molecules. Myosin cross-bridges are then able to bind to these active sites. The heads of myosin molecules project laterally from thick myofilaments towards the surrounding thin myofilaments. These heads are called cross bridges. The head of each myosin molecule contains an enzyme mysoin ATPase. In the presence of myosin ATPase,Ca++ and Mg++ ions, ATP breaks down into ADP and inorganic phosphate, releasing energy in the head.
Energy from ATP causes energized myosin cross bridges to bind to actin.
NCERT Solutions For Class 11 Biology Locomotion and Movement Q3
The energized cross-bridges move, causing thin myofilaments to slide along the thick myofilaments.

4. Write true or false. If false change the statement so that it is true.
(a) Actin is present in thin filament.
(b) H-zone of striated muscle fibre represents both thick and thin filaments.
(c) Human skeleton has 206 bones.
(d) There are 11 pairs of ribs in man.
(e) Sternum is present on the ventral side of the body.
Solution: (a) True
(b) False – H-Zone of striated muscle fibres represents only thick filaments.
(c) True
(d) False – There are 12 pairs of ribs in man.
(e) True

5. Write the differences between:
(a) Actin and Myosin
(b) Red and White muscles
(c) Pectoral and Pelvic girdle

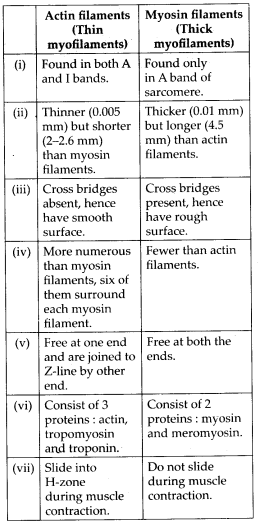

Solution: (a) Actin filaments and myosin filaments can be differentiated as follows:
NCERT Solutions For Class 11 Biology Locomotion and Movement Q5
(b) Differences between red muscle fibres and white muscle fibres are given in the following table:

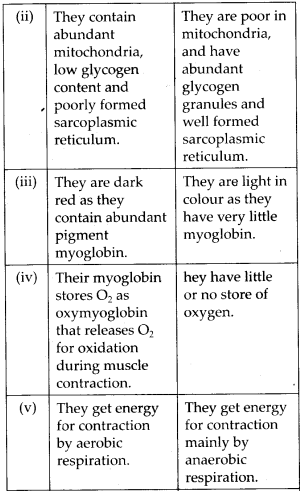

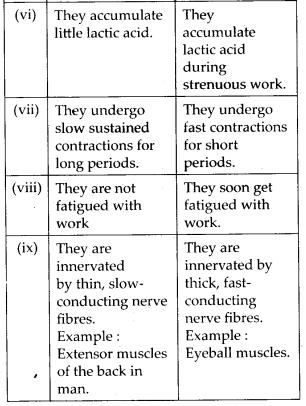

NCERT Solutions For Class 11 Biology Locomotion and Movement Q5.1

NCERT Solutions For Class 11 Biology Locomotion and Movement Q5.2

NCERT Solutions For Class 11 Biology Locomotion and Movement Q5.3

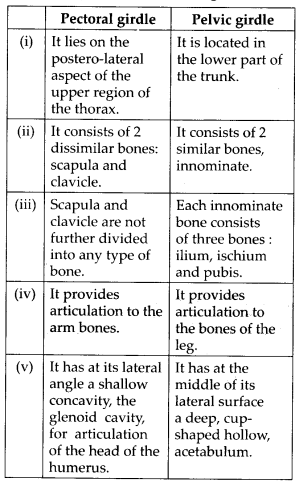

(c) Differences between pectoral and pelvic girdles are given in the following table:
NCERT Solutions For Class 11 Biology Locomotion and Movement Q5.4

6. Match Column I with Column II:
Column I                            Column II
(a) Smooth muscle          (i) Myoglobin
(b) Tropomyosin             (ii) Thin filament
(c) Red muscle                (iii) Sutures
(d) Skull                            (iv) Involuntary
Solution.(a) – (iv), (b)-(ii), (c)-(i), (d)-(iii)

7. What are the different types of movements exhibited by the cells of human body?
Solution: The cells of human body show three types of movements: amoeboid, ciliary and muscular.
Amoeboid movements: These are found in leucocytes of blood and phagocytes of certain body organs. In such cells, movements are brought with the help of temporary finger-like cytoplasmic projections, called pseudopodia or false feet. So it is also called pseudopodial movement. These pseudopodia are formed by flow of cytoplasm, called cyclosis (simplest form of movement), and cytoskeletal structures like microfilaments.
Ciliary movements: Large number of our internal tubular organs are lined by ciliated epithelium. For instance, the cilia of the cells lining the trachea, oviducts and vasa efferentia propel dust particles, eggs and sperms respectively by their coordinated movements in specific directions in these organs. Muscular movements: These are brought about by the action of skeleton, joints and muscles. These are of two types: movements of body parts and locomotion.

8. How do you distinguish between a skeletal muscle and a cardiac muscle?

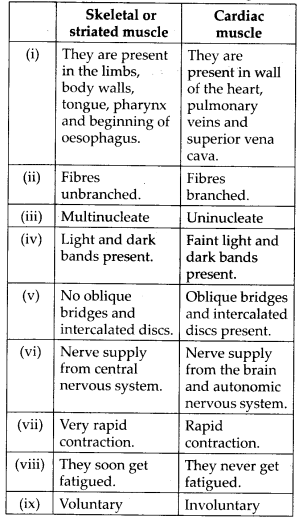

Solution: We can distinguish between a skeletal muscle and a cardiac muscle on the basis of the features discussed in the following table:
NCERT Solutions For Class 11 Biology Locomotion and Movement Q8

9. Name the type of joint between the following:
(a) atlas/axis
(b) carpal/metacarpal of thumb
(c) between phalanges
(d) femur/acetabulum
(e) between cranial bones
(f) between pubic bones in the pelvic girdle
Solution: (a) Pivot joint
(b) Saddle joint
(c) Hinge joint
(d) Ball and socket joint
(e) Fibrous joint
(f) Cartilaginous joint

10. Fill in the blank spaces:
(a) All mammals (except a few) have……. cervical vertebra.
(b) The number of phalanges in each limb of human is…….
(c) Thin filament of myofibril contains two ‘F’ actins and two other proteins namely…….and…….
(d) In a muscle fibre Ca++ is stored in …….
(e)…….and…….pairs of ribs are called floating ribs.
(f) The human cranium is made of……. bones.
Solution: (a) 7
(b) 14
(c) tropomyosin, troponin
(d) sarcoplasmic reticulum
(e) 11th and 12th
(f) 8
