Conic Sections Class 11 Notes Maths Chapter 11

CBSE Class 11 Maths Notes Chapter 11 Conic Sections

Circle
A circle is the set of all points in a plane, which are at a fixed distance from a fixed point in the plane. The fixed point is called the centre of the circle and the distance from centre to any point on the circle is called the radius of the circle.
The equation of a circle with radius r having centre (h, k) is given by (x – h)2 + (y – k)2 = r2.

The general equation of the circle is given by x2 + y2 + 2gx + 2fy + c = 0 , where, g, f and c are constants.

  • The centre of the circle is (-g, -f).
  • The radius of the circle is r = \(\sqrt { { g }^{ 2 }+{ f }^{ 2 }-c }\)

The general equation of the circle passing through origin is x2 + y2 + 2gx + 2fy = 0.

The parametric equation of the circle x2 + y2 = r2 are given by x = r cos θ, y = r sin θ, where θ is the parametre and the parametric equation of the circle (x – h)2 + (y – k)2 = r2 are given by x = h + r cos θ, y = k + r sin θ.

Note: The general equation of the circle involves three constants which implies that at least three conditions are required to determine a circle uniquely.

Parabola
A parabola is the set of points P whose distances from a fixed point F in the plane are equal to their distance from a fixed line l in the plane. The fixed point F is called focus and the fixed line l is the directrix of the parabola.

Main Facts About the Parabola

Forms of parabola y2= 4ax y2 = -4ax x2 = 4ay x2 = -4ay
Axis of parabola y = 0 y = 0 x = 0 x = 0
Directrix of parabola x = -a x = a y = -a y = a
Vertex (0, 0) (0, 0) (0, 0) (0, 0)
Focus (a, 0) (-a, 0) (0, a) (0, -a)
Length of latus rectum 4a 4a 4a 4a
Focal length |x + a| |x – a| |y + a| |y – a|

Ellipse
An ellipse is the set of all points in a plane such that the sum of whose distances from two fixed points is constant.
or
An ellipse is the set of all points in the plane whose distances from a fixed point in the plane bears a constant ratio, less than to their distance from a fixed point in the plane. The fixed point is called focus, the fixed line a directrix and the constant ratio(e) the eccentricity of the ellipse. We have two standard forms of ellipse i.e.
Conic Sections Class 11 Notes Maths Chapter 11

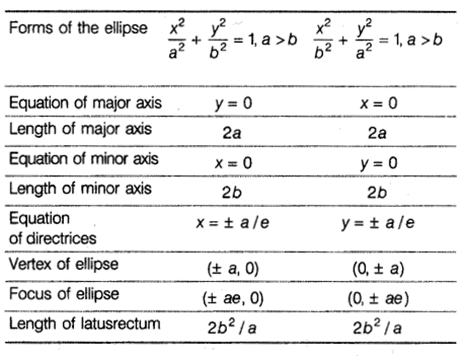

Main Facts about the Ellipse
Conic Sections Class 11 Notes Maths Chapter 11

Hyperbola
A hyperbola is the locus of a point in a plane which moves in such a way that the ratio of its distance from a fixed point in the same plane to its distance from a fixed line is always constant which is always greater than unity. The fixed point is called the focus, the fixed line is called the directrix and the constant ratio, generally denoted bye, is known as the eccentricity of the hyperbola.
We have two standard forms of hyperbola i.e.
Conic Sections Class 11 Notes Maths Chapter 11

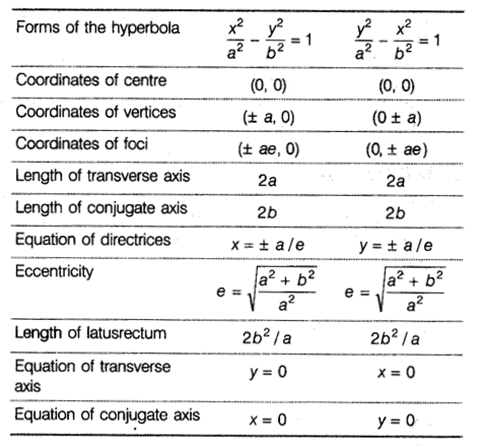

Main Facts About Hyperbola
Conic Sections Class 11 Notes Maths Chapter 11
