CBSE Sample Papers for Class 12 Physics Set 6 with Solutions

Practicing the CBSE Sample Papers for Class 12 Physics with Solutions Set 6 allows you to get rid of exam fear and be confident to appear for the exam.

CBSE Sample Papers for Class 12 Physics Set 6 with Solutions

Time : 3 Hours
Maximum Marks: 70

General Instructions :

1. There are 35 questions in all. All questions are compulsory.
2. This question paper has five sections: Section A, Section B, Section C, Section D and Section E. All the sections are compulsory.
3. Section A contains eighteen MCQs of 1 mark each, Section B contains seven questions of two marks each, Section C contains five questions of three marks each, Section D contains three long questions of five marks each and Section E contains two case study based questions of 4 marks each.
4. There is no overall choice. However, an internal choice has been provided in Section B, C, D and E. You have to attempt only one of the choices in such questions,
5. Use of calculators is not allowed.

Section – A

The following questions are multiple-choice questions with one correct answer. Each question carries 1 mark. There is no internal choice in this section.

Question 1.
One metallic sphere A is given positive charge whereas another identical metallic sphere B of exactly same mass as of A is given equal amount of negative charge. Then:[1]
(a) mass of A and mass of B still remain equals and same
(b) mass of A increases
(c) mass of B decreases
(d) mass of B increases
Answer:
(d) mass of B increases
Explanation: Negative charge means excess of electrons which increases the mass of sphere B, whereas positive charge on sphere A is given by removal of electrons.

Question 2.
The physical quantity having SI unit NC^-1 m is:[1]
(a) Electric potential
(b) Electric force
(c) Electric field intensity
(d) None of these
Answer:
(a) Electric potential
Explanation: V = E.d = NC^-1 m

Question 3.
The I-V characteristics shown in figure represents: [1]

(a) ohmic conductors
(b) non-ohmic conductors
(c) insulators
(d) superconductors
Answer:
(b) non-ohmic conductors
Explanation: The figure is showing I-V characteristics of non-ohmic or non-linear conductors.

Question 4.
A current I flows through a long straight conductor which is bent into a circular loop of radius R in the middle as shown in the figure. [1]

The magnitude of the net magnetic field at point O will be :
(a) Zero
(b) \(\frac{\mu_0 I}{2 R}(1+\pi)\)
(c) \(\frac{\mu_0 \mathrm{I}}{2 \pi R}\)
(d) \(\frac{\mu_0 \mathrm{I}}{2 \mathrm{R}}\left(1-\frac{1}{\pi}\right)\)
Answer:
(d) \(\frac{\mu_0 \mathrm{I}}{2 \mathrm{R}}\left(1-\frac{1}{\pi}\right)\)
Explanation: Net magnetic field at point
B_net = B₁ – B₂
= \(\frac{\mu_0 I}{2 R}-\frac{\mu_0 I}{2 \pi R}\)
= \(\frac{\mu_0 \mathrm{I}}{2 \mathrm{R}}\left(1-\frac{1}{\pi}\right)\)

Question 5.
A proton of mass m and charge q is moving in a plane with kinetic energy E. If there exists a uniform magnetic field B, perpendicular to the plane of the motion, the proton will move in a circular path of radius: [1]
(a) \(\frac{2 \mathrm{E} m}{q \mathrm{~B}}\)
(b) \(\frac{\sqrt{\mathrm{E} m}}{2 q \mathrm{~B}}\)
(c) \(\frac{\sqrt{2 \mathrm{E} m}}{q \mathrm{~B}}\)
(d) \(\frac{\sqrt{2 \mathrm{E} q}}{m \mathrm{~B}}\)
Answer:
(c) \(\frac{\sqrt{2 \mathrm{E} m}}{q \mathrm{~B}}\)

Question 6.
When a ferromagnetic substance is heated above Curie temperature, then : [1]
(a) it is demagnetised
(b) it becomes diamagnetic
(c) it becomes paramagnetic
(d) it remains unaffected
Answer:
(c) it becomes paramagnetic
Explanation: When a ferromagnetic substance is heated to a very high temperature it looses its magnetic property Ferromagnetic substances becomes paramagnetic. This happens because of the disordemess of the electron arrangement.

Question 7.
In an AC circuit I = 100 sin 200πt. The time required for the current to achieve its peak value will be:
(a) \(\frac { 1 }{ 200 }\) s
(b) \(\frac { 1 }{ 400 }\) s
(c) \(\frac { 1 }{ 100 }\) s
(d) \(\frac { 1 }{ 300 }\) s
Answer:
(b) \(\frac { 1 }{ 400 }\) s
Explanation: The current takes \(\frac { T }{ 4 }\) to reach the peak value.
In the given question,
\(\frac { 2π }{ T }\) = 200π
⇒ T = \(\frac { 1 }{ 100 }\) s
∴ Time to reach the peak value = \(\frac { 1 }{ 400 }\) s.

Question 8.
If E and B represent electric and magnetic field vectors of the electromagnetic wave, the direction of propagation of electromagnetic wave is along : [1]
(a) E
(b) B
(c) B x E
(d) E x B
Answer:
(d) E x B
Explanation: The direction of propagation of electromagnetic wave is perpendicular to both electric field vector E and magnetic field vector B, i.e., in the direction of E x B.

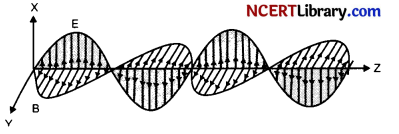

This can be seen by the diagram given below:

Here, electromagnetic wave is along the z-direction which is given by the cross product of E and B.

Question 9.
The magnetic flux through a circuit of resistance R changes by an amount ∆Φ in a time ∆t. Then the total quantity of electric charge Q that passes through any point in the circuit during the time At is represented by: [1]
(a) Q = \(\frac{\Delta \phi}{\mathrm{R}}\)
(b) Q = R\(\frac{\Delta \phi}{\Delta t}\)
(c) Q = \(\frac { 1 }{ R }\).\(\frac{\Delta \phi}{\Delta t}\)
(d) Q = \(\frac{\Delta \phi}{\Delta t}\)
Answer:
(a) Q = \(\frac{\Delta \phi}{\mathrm{R}}\)
Explanation:
∵ \(\frac{\Delta \phi}{\mathrm{R}}\) = ε
= IR
⇒ ∆Φ = (I∆t)R
= QR
⇒ Q = \(\frac{\Delta \phi}{\mathrm{R}}\)

Question 10.
A beam of electrons is used in Young’s double slit experiment. If the speed of electrons is increased, then the fringe width will: [1]
(a) increase
(b) decrease
(c) remain same
(d) fringes will not be seen
Answer:
(b) decrease
Explanation: For electron,
λ = \(\frac { h }{ mv }\)
β = λ\(\frac { D }{ d }\) = \(\frac { hD }{ mvd }\) [∵ λ = \(\frac { h }{ mv }\) ]
so, higher the velocity lower the fringe width.

Question 11.
Photons of frequency v are incident on the surfaces of metals A and B of threshold frequencies \(\frac { 3v }{ 4 }\) and \(\frac { 2v }{ 3 }\) respectively. The ratio of the maximum kinetic energy of electrons emitted from A to that from B is : [1]
(a) 2:3
(b) 4:3
(c) 3:4
(d) 3:2
Answer:
(c) 3:4
Explanation: According to Einstein photoelectric equation
hv = hv₀ + K_max
For first metal,
hv = h(\(\frac { 3 }{ 4 }\)v) + K₁
⇒ K₁ = \(\frac { hv }{ 4 }\)
For second metal,
hv = h(\(\frac { 2 }{ 4 }\)v) + K₂
⇒ K₂ = \(\frac { hv }{ 3 }\)
Thus, the ratio is
\(\frac{\mathrm{K}_1}{\mathrm{~K}_2}=\frac{h \mathrm{v} / 4}{h \mathrm{v} / 3}=\frac{3}{4}\)

Question 12.
Rutherford’s experiment on scattering of a-particles proved that: [1]
(a) atom contains positrons
(b) number of positive charges is not equal to the number of negative charges
(c) positive charge is uniformly distributed in the atom
(d) atom is mostly empty
Answer:
(d) atom is mostly empty
Explanation: Rutherford’s experiment on scattering of a-particles proved that atom is mostly empty.

Question 13.
The ratio of the nuclear radii of elements with mass number 216 and 125 is :
(a) 216 : 125
(b) \(\sqrt{216}: \sqrt{125}\)
(c) 6 : 5
(d) 5 : 6
Answer:
(c) 6 : 5
Explanation:
Since,
R = R_oA^1/3
∴ \(\frac{\mathrm{R}_1}{\mathrm{R}_2}=\frac{\mathrm{A}_1^{1 / 3}}{\mathrm{~A}_2^{1 / 3}}\)
⇒ \(\frac{\mathrm{R}_1}{\mathrm{R}_2}=\frac{(216)^{1 / 3}}{(125)^{1 / 3}}=\frac{6}{5}\)

Question 14.
An emf of 12 V is induced in a given coil when the current in it changes at the rate of 48 A/min. The inductance of the coil is: [1]
(a) 9.6 H
(b) 15 H
(c) 0.25 H
(d) 1.5 H
Answer:
(b) 15 H
Explanation:
∵ E = L\(\frac { dI }{ dt }\)
Hence, L = E\(\frac { dt }{ dl }\)
= 12 x \(\frac { 60 }{ 48 }\)
= 15 H

Question 15.
Three equal charges are placed on the three corners of a square. If the force between q₁ and q₂ is F₁₂ and that between q₁ and q₃ is F₁₃, the ratio of magnitudes \(\frac{F_{12}}{F_{13}}\) is: [1]
(a) 0.5
(b) 1
(c) 1.5
(d) 2
Answer:
(d) 2

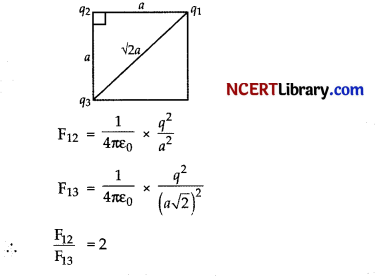

Explanation: By using Coulomb’s law

(Direction: Question 16 to 18) Two statements are given-one labelled Assertion (A) and the other labelled Reason (R). Select the correct answer to these questions from the codes (a), (b), (c) and (d) as given below: [1]
(a) Both A and R are true and R is the correct explanation of A.
(b) Both A and R are true and R is not the correct explanation of A.
(c) A is true, but R is false.
(d) A is false and R is also false.

Question 16.
Assertion : If the temperature of a semiconductor is increased then it’s resistance decreases.
Reason: The energy gap between conduction band and valence band is very small. [1]
Answer:
(a) Both A and R are true and R is the correct explanation of assertion.

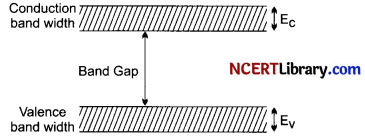

Explanation: In semiconductors, the energy gap between conduction band and valence band is small (a ≈ eV). Due to temperature rise, electron in the valence band gain thermal energy and may jump across the small energy gap (to the conduction band). Thus, conductivity increases and hence resistance decreases.

Question 17.
Assertion : Intensity pattern of interference and diffraction are not same.
Reason: When there are few sources of light, then the result is usually called diffraction but if there is a large number of them, the word interference is more often used. [1]
Answer:
(c) A is true, but R is false.
Explanation: When there are few sources of light, then the result is usually called interference but if there is a large number of them, the word diffraction is more often used.

Question 18.
Assertion : Photoelectric effect demonstrates the wave nature of light.
Reason : The number of photoelectrons is proportional to the frequency of light. [1]
Answer:
(d) A is false and R is also false.
Explanation: Photoelectric effect demonstrates particle nature of light. Number of emitted photoelectrons depends upon intensity of light.

Section – B

Question 19.
How are e.m. waves produced by oscillating charges?

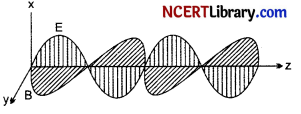

Draw a sketch of linearly polarized e.m. waves propagating in the Z-direction. Indicate the directions of the oscillating electric and magnetic fields. [2]
Answer:
A charge oscillating with some frequency, produces an oscillating electric field in space, which in turn produces an oscillating magnetic field perpendicular to the electric field, this process goes on repeating, producing e.m. waves in space perpendicular to both the fields.

The direction of electric and magnetic fields are perpendicular to each other and are also perpendicular to the direction of propagation of the wave.

Question 20.
(i) Write the expression for the force \(\vec{F}\) acting on a particle of mass m and charge q moving with velocity \(\vec{v}\) in a magnetic field \(\vec{B}\). Under what conditions will it move in (a) a circular path and (b) a helical path? [2]

(ii) Show that the kinetic energy of the particle moving in magnetic field remains constant.
Answer:
(i) \(\vec{F}\) = q(\(\vec{v}\) x \(\vec{B}\))
= qvB sin θ

Conditions:
(a) If the angle between v and B is 90° then it will move in circular path.
(b) If the angle is other than, 0°, 90° and 180° the path will be helical.

(ii) Since the work done on the charged particle moving in the magnetic field is zero. Hence, according to work energy theorem the change in kinetic energy is zero.

Question 21.
A heavy nucleus P of mass number 240 and binding energy 7.6 MeV per nucleon splits into two nuclei Q and R of mass numbers 110,130 and binding energy per nucleon 8.5 MeV and 8.4 MeV, respectively. Calculate the energy released in the fission. [2]
OR
A nucleus with mass number A = 240 and BE/A = 7.6 MeV breaks into two fragments each of A = 120 with BE/A = 8.5 MeV. Calculate the released energy.
Answer:
Given : Mass number of P = 240
Binding energy per nucleon = 7.6 MeV
Mass number of Q = 110
Binding energy per nucleon = 8.5 MeV
Mass number of R = 130
Binding energy per nucleon = 8.4 MeV
Total B.E. of P = 240 x 7.6 MeV = 1824 MeV
Total B.E. of Q and R = 110 x 8.5 + 130 x 8.4
= 935 + 1092 = 2027 MeV
∴ Energy released in the fission = 2027 – 1824
= 203 MeV
OR
B₁ = 7.6 x 240 = 1824 MeV.
Binding energy of each product nucleus,
B₂ = 8.5 x 120 = 1020 MeV
Then, energy released as the nucleus breaks,
E = 2B₂ – B₁ = 2 x 1020 – 1824 = 216 MeV.

Question 22.
An equilateral glass prism has a refractive index 1.6 in air. Calculate the angle of minimum deviation of the prism, when kept in a medium of refractive index 4\(\sqrt{2}\)/5. [2]
Answer:
As we know,
1n₂ = \(\frac{\sin \left(\frac{A+\delta_m}{2}\right)}{\sin \frac{A}{2}}\)
where n₂ = 1.6, refractive index of glass prism, n₁ = \(\frac{4 \sqrt{2}}{5}\), refractive index of medium
A = 60°, angle of prism
δ_m = angle of minimum deviation

Question 23.
Define the V-I characteristics of a junction diode. [2]
OR
Graph showing the variation of current versus voltage for a material Ga-As is shown in the figure. Identify the region of:
(i) negative resistance
(ii) where Ohm’s law is obeyed.
Answer:

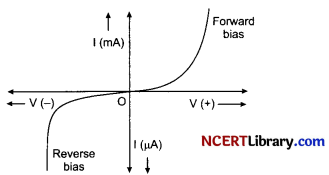

The V-I characteristic of the diode is the graph drawn between the voltage, V and current I in forward bias and reverse bias of junction diode.

(i) DE is the region of negative resistance because the slope of curve in this part is negative.]

(ii) BC is the region where Ohm’s law is obeyed because in this part, the current varies linearly with the voltage.

Question 24.

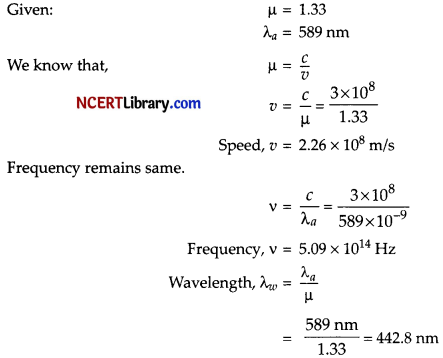

Monochromatic light of wavelength 589 nm is incident from air on a water surface. If p for water is 1.33, find the wavelength, frequency and speed of the refracted light. [2]
Answer:

Question 25.
Given figure represents a crystal unit of cesium chloride, CsCl. The cesium atoms, represented by open circles are situated at the comers of a cube of side 0.40 nm, whereas a Cl atom is situated at the centre of the cube. The Cs atoms are deficient in one electron while the Cl atom carries an excess electron. [2]
(a) What is the net electric field on the Cl atom due to eight Cs atoms?
(b) Suppose that the Cs atom at the comer A is missing. What is that net force now on the Cl atom due to seven remaining Cs atoms?

Answer:
(a) Here, chlorine atom is placed at the centre of the cube and cesium atoms at all the comers of the cube. Due to symmetry, the forces due to all CS ions or Cl, atom will cancel out.
∴ F = 0
Then, E = \(\frac { F }{ q }\) = 0

(b) Distance between Cl and CS ion
r = \(\sqrt{\left(\frac{a}{2}\right)^2+\left(\frac{a}{2}\right)^2+\left(\frac{a}{2}\right)^2}\)
= \(\sqrt{(0.20)^2+(0.20)^2+(0.20)^2}\) x 10^-9 m
= 0.346 x 10^-9 m
Now, F = \(\frac{1 \times q \times q}{4 \pi \varepsilon_0 \times r^2}=\frac{e^2}{4 \pi \varepsilon_0 \times r^2}\)
= \(\frac{\left(1.6 \times 10^{-19}\right)^2 \times 9 \times 10^9}{\left(0.346 \times 10^{-9}\right)^2}\)
= 1.92 x 10^-9 N.

Section – C

Question 26.
Write using Biot-Savart law, the expression for the magnetic field \(\vec{B}\) due to an element \(\vec{dl}\) carrying current I at a distance \(\vec{r}\) from it in a vector form.
Hence derive the expression for the magnetic field due to a current carrying loop of radius R at a point P distant X from its centre along the axis of the loop. [3]
Answer:

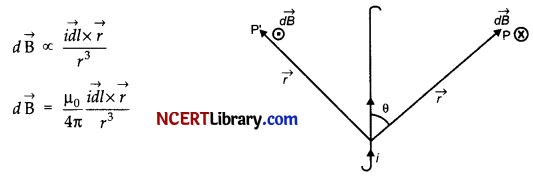

Suppose we have a conductor of length l in which current i is flowing. We need to calculate the magnetic field at a point P in vacuum. If \(\vec{idl}\) is one of the given by infinitely small current element, the magnetic field d \(\vec{B}\) at point P is given by

Where \(\frac{\mu_0}{4 \pi}\) is a proportionality constant.

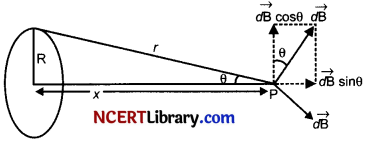

Suppose there is a circular coil of radius R, carrying a current i. Let P be a point at the axis of the coil at a distance x from the centre, at which the field in required.

Consider a conducting element dl of the loop. The magnetic field due to dl is given by the Biot-Savart law,
dB = \(\frac{\mu_0}{4 \pi} \frac{i|\overrightarrow{d l} \times \vec{r}|}{r^3}\)
dB = \(\frac{\mu_0}{4 \pi} \frac{i d l}{\left(\mathrm{R}^2+x^2\right)^{3 / 2}}\)
The direction of dB is perpendicular to the plane formed by dl and r. It has an X-component dB_x and a component perpendicular to X-axis, dB_⊥. When the components perpendicular to the X-axis are summed over, they cancel out and we obtain null result. Thus, only the X-component survives.

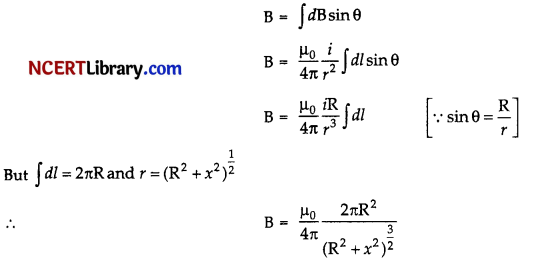

So the resultant field \(\vec{B}\) at P is given by

If the coil has N turns, then each turn will contribute equally to B. Then,
B = \(\frac{\mu_0 \mathrm{NiR^{2 }}}{2\left(x^2+\mathrm{R}^2\right)^{\frac{3}{2}}}\)

Question 27.

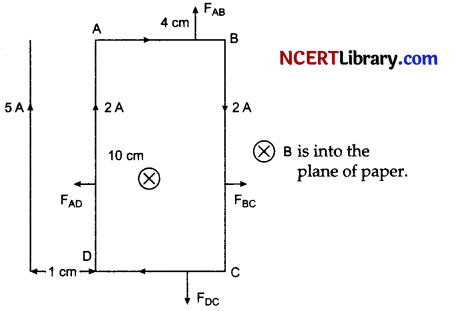

A rectangular loop of wire of size 4 cm x 10 cm carries a steady current of 2 A. A straight long wire carrying 5 A current is kept near the loop as shown. If the loop and the wire are coplanar, find : [3]

(i) the magnitude and direction of the force on the loop due to the current carrying wire.
(ii) the torque acting on the loop.
Answer:
(i) From the direction of current flow the force on each side of loop are as per fig. F_AB and F_DC are equal and opposite so they will cancel each other.

⇒ F_AD = \(\frac{\mu_0 \mathrm{I}_a \mathrm{I}_b}{2 \pi \times d}\)
= \(\frac{2 \times 10^{-7} \times 5 \times 2 \times\left(10 \times 10^{-2}\right)}{\left(1 \times 10^{-2}\right)}\)(attractive) towards left
= 2 x 10^-5 N(towards left)
⇒ F_BC = \(\frac{\left(2 \times 10^{-7}\right) \times 5 \times 2 \times\left(10 \times 10^{-2}\right)}{(1+4) \times 10^{-2}}\) (repulsive) towards right
= 4 x 10^-6(towards right)
F_net = (F_AD – F_BC)
= 2 x 10^-5 – 0.4 x 10^-5
= 16 x 10^-6 N(towards right)
The direction of net force is towards the straight wire i.e., attractive.

(ii) Torque will be zero as all the forces are in the plane of loop.

Question 28.
A series LCR circuit with R = 20 Q, L = 1.5 H and C = 35 pF is connected to a variable frequency 200 V a.c. supply. When the frequency of the supply equals the natural frequency of the circuit, what is the average power transferred to the circuit in one complete cycle? [3]
OR
Obtain the resonant frequency and Q-factor of a series LCR circuit with L = 3.0 H, C = 27 μF and R = 7.4 Ω. It is desired to improve the sharpness of the resonance of the circuit by reducing its full width at half maximum by a factor of 2. Suggest a suitable way.
Answer:
At resonance, the frequency of the supply power equals the natural frequency of the given LCR circuit.
Given: Resistance, R = 20 Ω, inductance, L = 1.5 H, capacitance, C = 35 μF = 35 x 10^-6 F
AC supply voltage to the LCR circuit, V = 200 V
Impedance of the circuit is given by the relation,
Z = \(\sqrt{R^2+\left(X_L-X_C\right)^2}\)
At resonance, χ_L = χ_c
∴ Z = R = 20 Ω
Current in the circuit can be calculated as :
I = \(\frac { V }{ Z }\)
= \(\frac { 200 }{ 20 }\)
= 10 A
Thus, the average power transferred to the circuit is one complete cycle:
P = VI = 200 x 10 = 2000 W
OR
Given, Inductance (L) = 3.0 H
Capacitance (C) = 27 μF = 27 x 10^-6 F
Resistance (R) = 7.4 Ω

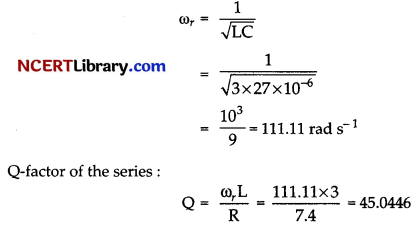

At resonance, angular frequency of the source for the given LCR series circuit is given by

To improve the sharpness of the resonance by reducing its ‘full width at half maximum’ by a factor of 2 without changing (ω_r) we need to reduce R to half i.e., resistance = \(\frac { R }{ 2 }\) = \(\frac { 7.4 }{ 2 }\) = 3.7 Ω

Question 29.
If the frequency of light incident on the cathode of a photo-cell is increased, how will the following be affected? Justify your answer. [3]
(a) Energy of the photoelectrons.
(b) Photo current.
OR
If light of wavelength 412.5 nm is incident on each of the metals given below, which one will show photoelectric emission and why?

Metal	Work Function (eV)
Na	1.92
K	2.15
Ca	3.20
Mo	4.17

Answer:
(a) The energy of the photoelectron also increases as E = hv.

(b) No effect on photoelectric current. This is because incident photon of increased energy cannot eject more than one electron from the metal surface and energy of electrons increases but no effect on photoelectric current.
OR
Wavelength of incident light,
λ = 412.5 nm
= 412.5 x 10^-9m
∴ Energy of incident light
E = \(\frac { hc }{ λ }\)
= \(\frac{6.63 \times 10^{-34} \times 3 \times 10^8}{412.5 \times 10^{-9}}\)
= 4.82 x 10^-19 J
= \(\frac{4.82 \times 10^{-19}}{1.6 \times 10^{-19}}\)eV
= 3.01 eV
Since, the energy of incident radiation is greater than the work function of sodium and potassium, but less than that of calcium and molybdenum, therefore, photoelectric emission will take place in sodium and potassium.

Question 30.
The short wavelength limit for the Lyman series of the hydrogen spectrum is 913.4 A. Calculate the short wavelength limit for Balmer series of the hydrogen spectrum. [3]
Answer:
For short wavelength of Lyman series,

Section – D

Question 31.
(a) You are given three capacitors of 2 μF, 3 μF and 4 μF, respectively.
(i) Form a combination of all these capacitors of equivalent capacitance \(\frac { 13 }{ 3 }\) μF.
(ii) What is the maximum and minimum value of the equivalent capacitance that can be obtained by connecting these capacitors? [5]

(b) Obtain the equivalent capacitance of the network in Fig. For a 300 V supply, determine the charge and voltage across each capacitor.

OR
(a) A capacitor of unknown capacitance is connected across a battery of V volts. The charge stored in it is 360 μC. When potential across the capacitor is reduced by 120 V, the charge stored in it becomes 120 μC.
Calculate:
(i) The potential V and unknown capacitance C.
(ii) What will be the charge stored in the capacitor, if the voltage applied had increased by 120 V?

(b) Two capacitors of unknown capacitances C₁ and C₂ are connected first in series and then in parallel across a battery of 100 V. If the energy stored in the two combinations is 0.045 J and 0.25 J respectively, determine the value of C₁ and C₂. Also calculate the charge on each capacitor in parallel combination.
Answer:
(a) Given, capacitor are 2 μF, 3 μF and 4 μF.
(i) The combination of 2 μF and 4 μF in series with 3 μF in parallel.
\(\frac{1}{\mathrm{C}_s}\) = \(\frac { 1 }{ 2 }\) + \(\frac { 1 }{ 4 }\)
⇒ \(\frac{1}{\mathrm{C}_s}\) = \(\frac { 2+1 }{ 4 }\)
⇒ C_s = \(\frac { 4 }{ 3 }\) μF
Now, C_equivalent = \(\frac { 4 }{ 3 }\) μF
= \(\frac { 13 }{ 3 }\) μF
So, we can get an equivalent of \(\frac { 13 }{ 3 }\) μF by connecting 2 μF and 4 μF in series and 3 μF in parallel.

(ii) Maximum capacitance can be achieved by joining the capacitors in parallel. i.e.,
C_max = 2 + 3 + 4 = 9μF
Minimum capacitance is achieved by joining the capacitors in series.
i.e., \(\frac{1}{C_{\min }}\) = \(\frac { 1 }{ 2 }\) + \(\frac { 1 }{ 3 }\) + \(\frac { 1 }{ 4 }\)
= \(\frac{6+4+3}{12}\)
C_min = \(\frac { 12 }{ 13 }\)μF

(b) Capacitance of capacitor C₁ is 100 pF.
Capacitance of capacitor C₂ is 200 pF.
Capacitance of capacitor C₃ is 200 pF.
Capacitance of capacitor C₄ is 100 pF.
Supply potential, V = 300 V
Capacitors C₂ and C₃ are connected in series. Let their equivalent capacitance be C’
∴ \(\frac{1}{C^{\prime}}=\frac{1}{200}+\frac{1}{200}=\frac{2}{200}\)
C’ = 100 pF
Capacitors C₁ and C’ are in parallel. Let their equivalent capacitance be C”.
∴ C” = C’₁ + C₁
= 100 + 100 = 200 pF
C” and C₄ are connected in series. Let their equivalent capacitance be C.
∴ \(\frac{1}{C^{\prime}}=\frac{1}{C^{\prime \prime}}+\frac{1}{C_4}=\frac{1}{200}+\frac{1}{100}\)
= \(\frac { 2 + 1}{ 200 }\)
C = \(\frac { 200 }{ 3 }\) pF
Hence, the equivalent capacitance of the circuit is \(\frac { 200 }{ 3 }\) pF.
Potential difference across C” = V”
Potential difference across C₄ = V₄
∴ V” + V₄ = V = 300 V
Charge on C₄ is given by,
Q₄ = CV (As C₄ and C” are in series then they have same charge = Q₄)
= \(\frac { 200 }{ 3 }\) x 10^-12 x 300
= 2 x 10^-8 C
∴ V₄ = \(\frac{Q_4}{C_4}=\frac{2 \times 10^{-8}}{100 \times 10^{-12}}=200 \mathrm{~V}\)
∴ Voltage across C₁ is given by,
V₁ = V – V₄ = 300 – 200 = 100 V
Hence, potential difference, V₁ across C₁ is 100 V.
Charge on C₁ is given by,
Q₁ = C₁V₁
= 100 x 10^-12 x 100 = 10^-8 C
V₂ = V₃ = 50 V
Therefore, charge on C₂ is given by,
Q₂ = C₂V₂
= 200 x 10^-12 x 50 = 10^-8C
and charge on C₃ given by,
Q₃ = C₃V₃
= 200 x 10^-12 x 50
= 10^-8C
Hence, the equivalent capacitance of the given circuit is \(\frac { 200 }{ 3 }\) pF with.
Q₁ = 10^-8C V₁ = 100 V
Q₂ = 10^-8C V₂ = 50 V
Q₃ = 10^-8C V₃ = 50 V
Q₄ = 2 x ^-8C V₄ = 200 V
OR
(a) (i) Initial voltage, V₁ = V volts and charge stored
Q₁ = 360 μC
Q₁ = CV₁ … (i)
Changed potential,
V₂ = V – 120
Q₂ = 120 μC
Q₂ = CV₂ … (ii)
By applying (i) divided by (ii), we get
\(\frac{\mathrm{Q}_1}{\mathrm{Q}_2}=\frac{\mathrm{CV}}{C V_1}\)
⇒ \(\frac{360}{120}=\frac{V}{V-120}\)
⇒ V = 180 V
Hence, C = \(\frac{\mathrm{Q}_1}{\mathrm{~V}_1}=\frac{360 \times 10^{-6}}{180}\)
= 2 x 10^-6 F
= 2 μF

(ii) If the voltage applied had increased by 120 V, then
V₃ = 180 +120 = 300 V
Hence charge stored in capacitor,
Q₃ = CV₃
= 2 x 10^-6 x 300 = 600 μC

(b) When the capacitors are connected in parallel.
Equivalent capacitance,
C_p = C₁ + C₂
The energy stored in the combination of the capacitors,

Solving (i) and (ii), we get
C₁ = 38.2 μF and C₂ = 11.8 μF
When the capacitors are connected in parallel, the charge on each of them can be obtained as follows :
Q₁ = C₁V = 38.2 x 10^-6 x 100
= 38.2 x 10^-4C
Q₂ = C₂V = 11.8 x 10^-6 x 100
= 11.8 x 10^-4 C

Question 32.
(a) If two similar large plates, each of area A having surface charge densities + σ and – σ are separated by a distance in air, find the expressions for: [5]
(i) field at points between the two plates and on outer side of the plates. Specify the direction of the field in each case.
(ii) the potential difference between the plates.
(iii) the capacitance of the capacitor so formed.

(b) Two metallic spheres of radii R and 2R are charged so that both of these have same surface charge density σ. If they are connected to each other with a conducting wire, in which direction will the charge flow and why?
OR
(a) Show that the normal component of electrostatic field has a discontinuity from one side of a charged surface to another given by
(E₂ – E₁).\(\hat{n}=\frac{\sigma}{\varepsilon_0}\)
where \(\hat{n}\) is a unit vector normal to the surface at a point and o is the surface charge density at that point. (The direction of \(\hat{n}\) is from side 1 to side 2). Hence show that just outside a conductor, the electric field is σ \(\hat{i}\)/ε₀.

(b) Show that the tangential component of electrostatic field is continuous from one side a charged surface to another.
[Hint: For (i) Use Gauss’ law. For (ii) use the fact that work done by electrostatic field on a closed loop is zero.]
Answer:

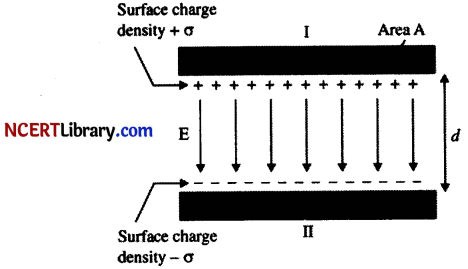

(a) (i) Consider a parallel plate capacitor with two identical plates X and Y, each having an area of A, and separated by a distance d. Let the space between the plates be filled by a dielectric medium with its dielectric constant as K and a be the surface charge density on each of the plates.

Surface charge density of plate 1
σ = \(\frac { Q }{ A }\)
and that of plate 2 is – σ.
Electric field in outer region I,
E = \(\frac{\sigma}{2 \varepsilon_0}-\frac{\sigma}{2 \varepsilon_0}\) = 0
In the inner region between plates 1 and 2, the electric fields due to the two charged plates add up.
So,
E = \(\frac{\sigma}{2 \varepsilon_0}+\frac{\sigma}{2 \varepsilon_0}=\frac{\sigma}{\varepsilon_0}\) = 0

(ii) For uniform electric field, potential difference is simply the electric field multiplied by the distance between the plates, i.e.,
V = Ed = \(\frac{1}{\varepsilon_0} \frac{\mathrm{Q} d}{\mathrm{~A}}\)

(iii) Now, the capacitance of the parallel plate capacitor,
C = \(\frac { Q }{ A }\) = \(\frac{\mathrm{Q} \cdot \varepsilon_0 \mathrm{~A}}{\mathrm{Q} d}=\frac{\varepsilon_0 \mathrm{~A}}{d}\)

(b) We know that the potential difference of the metallic sphere is given by,
V = \(\frac{Q}{4 \pi \varepsilon_0 r}\)
where r is the radius of the sphere.
Now, the potential of the metallic sphere of radius R is given by,
V_R = \(\frac{\mathrm{Q}}{4 \pi \varepsilon_0 \mathrm{R}}\)
V_R = \(\frac{\sigma\left(4 \pi R^2\right)}{4 \pi \varepsilon_0 R}\)
V_R = \(\frac{\sigma \mathrm{R}}{\varepsilon_0}\) … (i)
Similary, the potential of the metallic sphere of radius 2R is given by
V_2R = \(\frac{\mathrm{Q}}{4 \pi \varepsilon_0 2 \mathrm{R}}\)
V_2R = \(\frac{\sigma\left(4 \pi(2 R)^2\right)}{4 \pi \varepsilon_0 2 R}\)
V_2R = \(\frac{\sigma \times 2 R}{\varepsilon_0}\) … (ii)
From the relation (i) and (ii) we know that V_2R > V_R.
The charge will flow from the sphere of radius of 2R to the sphere of radius R, if the spheres are connected.
OR
(a) Electric field on one side of a charged body is E₁ and electric field on the other side of the same body is E₂. If infinite plane charged body has a uniform thickness, then electric field due to one surface of the charged body is given by,
\(\overrightarrow{\mathrm{E}_1}=-\frac{\sigma}{2 \varepsilon_0} \hat{n}\) … (i)
where, \(\hat{n}\) = Unit vector normal to the surface at a point
σ = Surface charge density at that point
Electric field due to the other surface of the charged body,
\(\overrightarrow{\mathrm{E}}_2=\frac{\sigma}{2 \varepsilon_0} \hat{n}\) … (ii)
Electric field at any point due to the two surfaces,

Therefore, the electric field just outside the conductor is \(\frac{\sigma}{\varepsilon_0} \hat{n}\)

(b) When a charged particle is moved from one point to the other on a closed loop, the work done by the electrostatic field is zero. Hence, the tangential component of electrostatic field is continuous from one side of charged surface to the other.

Question 33.
(a) Draw a labelled ray diagram to obtain the real image formed by an astronomical telescope in normal adjustment position. Define its magnifying power. [5]
(b) You are given three lenses of power 0.5 D, 4 D and 10 D to design a telescope.
(i) Which lenses should be used as objective and eyepiece ? Justify your answer.
(ii) Why is the aperture of the objective preferred to be large ?
OR
(a) A ray of light incident on the face AB of an isosceles triangular prism makes an angle of incidence (i) and deviates by angle ß as shown in the figure. Show that in the position of minimum deviation ∠ß = ∠α. Also find out the condition when the refracted ray QR suffers total internal reflection.

(b) Draw a labelled ray diagram of a refracting telescope. Define its magnifying power and writer the expression for it.
Write two important limitations of a refracting telescope over a reflecting type telescope.
Answer:

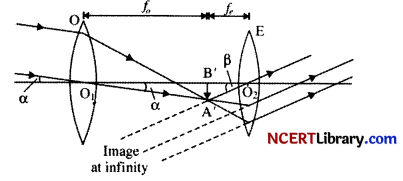

(a)

Magnifying power: The magnifying power of a refracting type astronomical telescope is defined as the ratio of angle subtended by the final image at eye to the angle subtended by the object at eye.
We know that,
Magnification, m = \(\frac{f_o}{f_e}=\frac{\mathrm{P}_e}{\mathrm{P}_o}\)

(b) (i) The lens with the smallest power or largest focal length should be used as the objective i.e., lens with power 0.5 D.
(ii) The operature is preferred to be large so that the telescope can collect as much as light coming from the distant object as possible.

OR

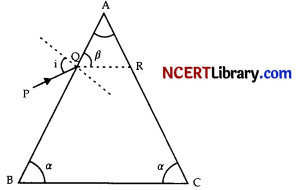

(a) \(\frac{\sin i}{\sin r}\) = μ

Condition for minimum deviation:
1. A = 180 – 2α
2. \(\frac{\sin i}{\sin (90-\beta)}\) = μ
when, r₁ – r₂ – r > critical angle
r₁ + r₂ 180 – 2α
2r = 180 – 2α
r = 90 – r<₁
ß = 90 – r₁
= 90 – 90 + α
ß = α
Condition when QR have total internal reflection:
∠QRC ≥ critical angle for the prism
∠ 180° – ß ≥ critical angle
or ∠ 180° – α ≥ critical angle

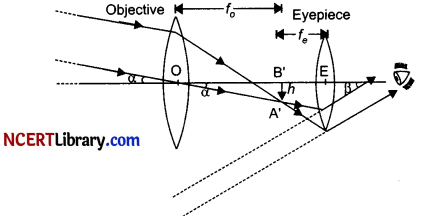

(b) Refractirig telescope:

Magnifying power: The magnifying power is the ratio of the angle P subtended at the eye by the final image to the angle a which the object subtends at the lens or the eye.
m = – \(\frac{\beta}{\alpha}=-\frac{h}{f_e} \cdot \frac{f_o}{h}=-\frac{f_o}{f_e}\)

Limitations of refracting telescope over reflecting type telescope :

Refracting telescope suffers from chromatic aberration as it uses large sized lenses.
The requirement of big lenses tend to be very heavy and therefore, difficult to make and support by their edges.

Section – E

Question 34.
Case Study: Young’s double slit experiment [5]
Read the following paragraph and answer the questions.
Young’s double slit experiment was done by Thomas Young to demonstrate experimentally the interference of light. In this, coherent sources of monochromatic light are used. Here two sources of monochromatic light are obtained by placing two slits before a single light source. As light rays passes from the slits the interference of light takes place. The interference fringes are obtained on the screen. The fringe obtained at the centre of screen is a bright fringe
Fringe width (ß) = \(\frac { λD }{ d }\)
Where ß-Fringe width, D – Distance between screen and slit, d – Distance between slits.
(i) What kind of light sources are used in this experiment?
(ii) How many slits are used in this experiment?
(iii) What kind of phenomena of light is demonstrated with this experiment? Explain.
OR
(iii) What will be the ratio of fringe width ß₁ and ß₂ obtained with red light of λ₁ = 660 nm and ultraviolet light of λ₂ = 165 nm
Answer:
(i) In double slite experiment, light sources must be coherent as well as monochromatic.
(ii) Two
(iii) Interference is the phenomenona in which two waves superimpose to form the resultant wave of the
OR
(iii) ß₁ = \(\frac{\lambda_1 \mathrm{D}}{d}\)
ß₂ = \(\frac{\lambda_2 \mathrm{D}}{d}\)
\(\frac{\beta_1}{\beta_2}=\frac{\lambda_1}{\lambda_2}\)
= \(\frac{660 \mathrm{~nm}}{165 \mathrm{~nm}}\)
= 4 : 1

Question 35.
Case Study:
Read the following paragraph and answer the questions. [5]
From Bohr’s atomic model, we know that the electrons have well defined energy levels in an isolated atom. But due to interatomic interactions in a crystal, the electrons of the outer shells are forced to have energies different from those in isolated atoms. Each energy level splits into a number of energy levels forming a continuous band. The gap between top of valence band and bottom of the conduction band in which no allowed energy levels for electrons can exist is called energy gap.

(i) What is the value of energy gap in insulator?
(ii) On the bases of band theory, which solid having smallest energy band gap?
(iii) Carbon, silicon and germanium have four valence electrons each. At room temperature which one of the element is most appropriate?
OR
(iii) Name the solid which have higher energy level partially filled with electron.
Answer:
(i) In insulator, energy band gap is > 3 eV

(ii) Conductors have smallest energy band gap. According to band theory the forbidden gap in conductors E_g ≈ 0, in insulators E_g > 3 eV and in semiconductors E_g < 3 eV.

(iii) The four valence electrons of C, Si and Ge lie respectively in the second, third and fourth orbit. Hence energy required to take out an electron from these atoms (i.e., ionisation energy E_g) will be least for Ge, followed by Si and highest for C. Hence, the number of free electrons for conduction in Ge and Si are significant but negligibly small for C.
OR
Conductors are the only solid which have higher energy level partially filled electron.
