CBSE Sample Papers for Class 12 Physics Set 5 with Solutions

Practicing the CBSE Sample Papers for Class 12 Physics with Solutions Set 5 allows you to get rid of exam fear and be confident to appear for the exam.

CBSE Sample Papers for Class 12 Physics Set 5 with Solutions

Time : 3 Hours
Maximum Marks: 70

General Instructions :

1. There are 35 questions in all. All questions are compulsory.
2. This question paper has five sections: Section A, Section B, Section C, Section D and Section E. All the sections are compulsory.
3. Section A contains eighteen MCQs of 1 mark each, Section B contains seven questions of two marks each, Section C contains five questions of three marks each, Section D contains three long questions of five marks each and Section E contains two case study based questions of 4 marks each.
4. There is no overall choice. However, an internal choice has been provided in Section B, C, D and E. You have to attempt only one of the choices in such questions,
5. Use of calculators is not allowed.

Section – A

The following questions are multiple-choice questions with one correct answer. Each question carries 1 mark. There is no internal choice in this section.

Question 1.
The total flux through the faces of the cube with side of length a if a charge 2q is placed at corner A of the cube is: [1]

Answer:
(a) \(\frac{q}{8 \varepsilon_0}\)
(b) \(\frac{q}{2 \varepsilon_0}\)
(c) \(\frac{q}{4 \varepsilon_0}\)
(d) \(\frac{2 q}{\varepsilon_0}\)
Answer:
(c) \(\frac{q}{4 \varepsilon_0}\)
Explanation: In the figure, when a charge 2q is placed at comer A of the cube, it is being shared equally by eight cubes. So, total flux through the faces of the given cube = \(\frac{q}{4 \varepsilon_0}\)

Question 2.
In the given figure, a charge Q is fixed. Another charge q is moved along circular arc MN of radius r around it, from the point M to the point N such that the length of the arc MN = l. The work done in this process is : [1]

(a) zero
(b) \(\frac{1}{4 \pi \varepsilon_0} \cdot \frac{\mathrm{Q} q}{r^2} l\)
(c) \(\frac{\mathrm{Q} q}{2 \varepsilon_0 r^2} l\)
(d) \(\frac{\mathrm{Q} q}{2 \pi \varepsilon_0 r^2}\)
Answer:
(a) zero
Explanation: As distance of point M and N from C is constant so They are at same potential.
V_M = V_N =
V_M – V_N
The work done in this process W = (V_M – V_N)q = 0

Question 3.
A potential difference V is applied to a copper wire. If the potential difference is increased to 2V, then the drift velocity of electrons will: [1]
(a) be double the initial velocity
(b) remain same
(c) be \(\sqrt{2}\) times the initial velocity
(d) be half the initial velocity
Answer:
(a) be double the initial velocity
Explanation: As we know that,
I = nev_d
∴ I v_d
From Ohm’s law,
V °C I OC
If the potential difference is doubled, drift velocity of electrons will also double.

Question 4.
Magnetic field due to a ring having n turns at a distance x on its axis is proportional to (if r = radius of ring): [1]
(a) \(\frac{r}{\left(x^2+r^2\right)}\)
(b) \(\frac{n r^2}{\left(x^2+r^2\right)^{3 / 2}}\)
(c) \(\frac{r^2}{\left(x^2+r^2\right)^{3 / 2}}\)
(d) \(\frac{n^2 r^2}{\left(x^2+r^2\right)^{3 / 2}}\)
Answer:
(b) \(\frac{n r^2}{\left(x^2+r^2\right)^{3 / 2}}\)
Explanation: Magnetic field on the axis of circular coil carrying current,
B = \(\frac{\mu_0}{4 \pi} \frac{2 \pi n I r^2}{\left(x^2+r^2\right)^{3 / 2}}\)
⇒ B ∝ \(\frac{n r^2}{\left(x^2+r^2\right)^{3 / 2}}\)

Question 5.
A current of 10 A is passing through a long wire which has semicircular loop of the radius 20 cm as shown in the figure. Magnetic field produced at the centre of the loop is: [1]

(a) 4πμT
(b) 2πμT
(c) 10πμT
(d) 5πμT
Answer:
(d) 5πμT

Question 6.
A north pole of strength 50 Am and south pole of strength 100 Am are separated by a distance of 10 cm in air. Find the force between them: [1]
(a) 20 x 10^-6 N
(b) 25 x 10^-3 N
(c) 30 x 10^-18 N
(d) 50 x 10^-3 N
Answer:
(d) 50 x 10^-3 N

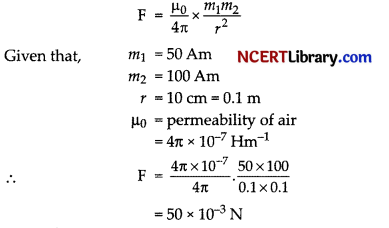

Explanation: Force between magnetic poles in air is given by,

Question 7.
An air core solenoid has 1000 turns and is one metre long. It cross-sectional area is 10 cm². Its self-inductance is: [1]
(a) 0.1256 mH
(b) 1.256 mH
(c) 12.56 mH
(d) 125.6 mH
Answer:
(b) 1.256 mH
Explanation: Self-inductance of solenoid coil having N number of turns, length l and area of cross-section A is given by,
L = μ₀\(\frac{\mathrm{N}^2}{l}\) A
Here,
N = 1000
A = 10 cm²
or A = 10 x 10^-4 m²
and l = 1 m
Substituting these values in the above equation, we get
L = 4π x 10^-7 x \(\frac{(1000)^2}{1}\) x 10 x 10^-4
⇒ L = 1.256 mH

Question 8.
The selectivity of a series LCR a.c. circuit in large, when: [1]
(a) L is large, R is large
(b) L is small and R is small
(c) L is large and R is small
(d) L = R
Answer:
(c) L is large and R is small
Explanation: Since, selectivity depends on the quality of resonance. The quality factor is given by Q = ω_oL/R. High value of quality factor make sure that the resonance curve is sharp, sharper the resonance curve, more selective is the LCR circuit.

Question 9.
If v = \(\frac{1}{\sqrt{\mu \varepsilon}}\) gives the speed of an electromagnetic wave in a material medium, μ the permeability of the medium and e its permittivity. What is its effect on frequency? [1]
(a) Frequency increases gradually
(b) Frequency decreases
(c) Frequency first increases and then decreases to zero
(d) Frequency remain unchanged
Answer:
(d) Frequency remain
Explanation: The frequency of an electromagnetic wave is independent of the medium in which the wave travels.

Question 10.
A short pulse of white light is incident from air to a glass slab at normal incidence. After travelling through the slab, the first colour to emerge is : [1]
(a) blue
(b) green
(c) violet
(d) red
Answer:
(d) red
Explanation: Since v x λ, the light of red colour is of highest wavelength and therefore of highest speed. Therefore, after travelling through the slab, the red colour emerge first.

Question 11.
In photoelectric emission process from a metal of work function 1.8 eV, the kinetic energy of most energetic electrons is 0.5 eV. The corresponding stopping potential is : [1]
(a) 2.3 V
(b) 1.8 V
(c) 1.3 V
(d) 0.5 V
Answer:
(d) 0.5 V
Explanation: V_o is the stopping potential.
In a photoelectric effect, the maximum kinetic energy of electron, K_max = eV_o
So, V_o = \(\frac{\mathrm{K}_{\max }}{e}=\frac{0.5 \mathrm{eV}}{e}=0.5 \mathrm{~V}\)

Question 12.
Bohr’s atom model assumes : [1]
(a) mass of electron remains constant
(b) electrons in a quantized orbit will not radiate energy
(c) the nucleus is of infinite mass and is at in rest
(d) all the above conditions
Answer:
(d) all the above conditions
Explanation: In 1913, Niels Bohr’s proposed a model for the hydrogen atom. The Bohr’s model was based on the following assumptions:
(1) The electron in a hydrogen atom travels around the nucleus in a circular orbit.
(2) The nucleus is of infinite mass and is in rest.
(3) Electrons in a quantized orbit will not radiate energy.
(4) Mass of electron remains constant.

Question 13.
The amount of 1 mg of matter converted into energy gives : [1]
(a) 9 J
(b) 9 x 10³ J
(c) 9 x 10⁵ J
(d) 9 x 10¹⁰ J
Answer:
(d) 9 x 10¹⁰ J
Explanation:
Here, m = 1 mg = 1 x 10^-3 g = 1 x 10^-6 kg
According to Einstein mass-energy equivalence.
E = mc²
= 1 x 10^-6 x (3 x 10⁸)² = 9 x 10¹⁰ J

Question 14.
In an AC circuit the voltage applied is E = E₀ sin ωt. The resulting current in the circuit is I = I₀ sin(ωt – \(\frac { π }{ 2 }\) [1]
Answer:
(a) p = \(\frac{\mathrm{E}_0 \mathrm{I}_0}{2}\)
(b) p = \(\frac{E_0 I_0}{\sqrt{2}}\)
(c) p = \(\sqrt{2} \mathrm{E}_0 \mathrm{I}_0\)
(d) p = 0
Answer:
(d) p = 0
We know that power consumed in AC circuit is given by
P = E_rms I_rms cos Φ
E = E₀ sin ωt
I = I₀ sin(ωt – \(\frac { π }{ 2 }\))
which implies that the phase difference,
Φ = \(\frac { π }{ 2 }\)
∴ P = E_rms I_rms cos \(\frac { π }{ 2 }\) = 0 (∵ cos \(\frac { π }{ 2 }\) = 0)

Question 15.
In the figure the net electric flux through the area A is Φ = \(\hat{E}\). \(\hat{A}\) when the system is in air. On immersing the system in water the net electric flux through the area: [1]

(a) becomes zero
(b) remains same
(c) increases
(d) decrease
Answer:
(d) decreases
Explanation: Since, electric field \(\hat{E}\) decreases inside water, therefore, flux Φ = \(\hat{E}\).\(\hat{A}\) also decreases.

(Direction: Question 16 to 18) Two statements are given-one labelled Assertion (A) and the other labelled Reason (R). Select the correct answer to these questions from the codes (a), (b), (c) and (d) as given below:
(a) Both A and R are true and R is the correct explanation of A.
(b) Both A and R are true and R is not the correct explanation of A.
(c) A is true, but R is false.
(d) A is false, and R is also false.

Question 16.
Assertion : Critical angle is minimum for red colour.
Reason: Because critical angle
θ_c = sin^-1(\(\left(\frac{1}{2 \mu}\right)\)) and μ ∝ \(\frac { 1 }{ λ }\)
(d) A is false, and R is also false.
Explanation: Critical angle is minimum for violet colour, critical angle = θ_c = sin^-1\(\frac { 1 }{ μ }\)

Question 17.
Assertion : The de-Broglie wavelength equation has significance for any microscopic and sub microscopic particles.
Reason: de-Broglie wavelength is inversely proportional to the mass of the object its velocity is constant. [1]
Answer:
(a) Both A and R are true and R is the correct explanation of A.
Explanation: As de-Broglie wavelength,
λ = \(\frac { h }{ mv }\)
so, for constant velocity,
λ ∝ \(\frac { 1 }{ m }\)
Lesser the mass greater will be its dc-Brogue wavelength.

Question 18.
Assertion : The value of current through p-n junction in the given figure will be 10 mA. [1]

Reason : In the above figure, p-side is at higher potential than n side.
Answer:
(b) Both A and R are true, but R is not the correct explanation of A.
Explanation: As we know that
V = 5 – 2 = 3 V
I = \(\frac { V }{ R }\) = \(\frac { 3 }{ 300 }\) = \(\frac { 1 }{ 100 }\) A
= 10 mA

Section – B

Question 19.
Name the constituent radiation of electromagnetic spectrum which
(i) is used in ovens for cooking purposes.
(ii) is used in scientific research.
(iii) is used in treatments of cancer and tumours. [2]
Answer:
(i) Microwaves
(ii) X-rays
(iii) Gamma rays
Answer:

Question 20.
Draw magnetic field lines when a (i) diamagnetic, (ii) paramagnetic substance is placed in an external magnetic field. Which magnetic property distinguishes this behaviour of the field lines due to the two substances? [2]
Answer:
Figure 1 shows magnetic field lines when (i) diamagnetic materials are placed in external magnetic field.

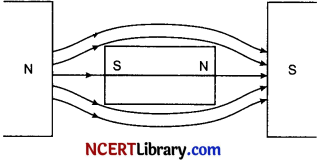

Figure 2 shows magnetic field lines, when (ii) paramagnetic materials are placed in external magnetic field.

Magnetic dipole moment of materials are responsible for this diamagnetic material has zero magnetic moment. Paramagnetic material has non-zero magnetic moment.

Question 21.
In a single slit diffraction experiment, when tiny circular obstacle is placed in path of light from a distance source, a bright spot is seen at the centre of the shadow of the obstacle. Explain why?
State two points of difference between the interference pattern obtained in Young’s double slit experiment and the diffraction pattern due to a single slit. [2]
OR
Draw the intensity pattern for single slit diffraction and double slit interference. Hence, state two differences between interference and diffraction patterns.
Answer:
A bright spot is observed when a tiny circular object is placed in path of light from a distant source in a single slit diffraction experiment because light rays flare into the shadow region of the circular object as they pass the edge of the tiny circular object. The light from all the edges of the tiny circular object are in phase with each other. Thus, they form a bright spot at the centre of the shadow of the tiny circular object.

The two differences between the interference patterns obtained in Young’s double slit experiment and the diffraction pattern due to a single slit are as follows:
(i) The fringes in the interference pattern obtained from diffraction are of varying width, while in case of interference, all are of the same width.

(ii) The bright fringes in the interference pattern obtained from diffraction have a central maximum followed by fringes of decreasing intensity, whereas in case of interference, all the bright fringes are of equal width.
OR

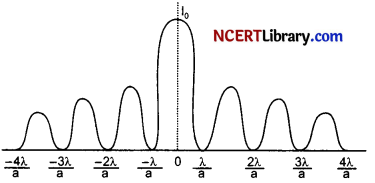

Intensity pattern for single slit diffraction :

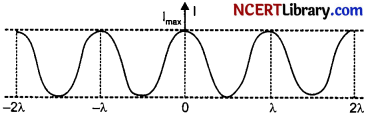

Intensity pattern for double slit interference :

Difference between interference and diffraction patterns :

• Interference fringes are of the same width while diffraction fringes are not of the same width.
• In interference pattern, all bright bands are of same intensity while in diffraction pattern all bright bands are not of same intensity.

Question 22.
Use Bohr’s model of hydrogen atom to obtain the relationship between the angular momentum and the magnetic moment of the revolving electron. [2]
Answer:
Circulating electron around a heavy nucleus constitutes a current given by :
I = \(\frac{e}{\mathrm{~T}}=\frac{e}{\frac{2 \pi \mathrm{R}}{v}}=\frac{e v}{2 \pi \mathrm{R}}\)
So, there will be magnetic moment associated with this circulating current is given by:
μ_e = I.A
= \(\frac{e v}{2 \pi \mathrm{R}} \times \pi \mathrm{R}^2\)
= \(\frac{e v \mathrm{R}}{2}\) … (i)
Angular momentum of circulating electron is given by:
l = mv R
So, υR = \(\frac { l }{ m }\) … (ii)
Put the value of equation (ii) in equation (i), we get
μ_e = \(\frac { el }{ 2m }\)
which is the required expression.

Question 23.
Draw circuit diagrams to illustrate forward biasing and reverse biasing of a diode? [2]
OR
Briefly explain how a potential barrier is set up across a p-n junction as a result of diffusion and drift of the charge carriers.
Answer:
Forward biasing of a diode : In this arrangement, the positive terminal of battery is connected to p-end and negative terminal to n-end of the crystal, so that an external electric field E is established directed from p to n-end to oppose the internal field E_i. Thus, the junction is said to be conducting.

Reverse biasing of a diode : In this arrangement the positive terminal of battery is connected to n-end and negative to p-end of the crystal, so that the external field is established to support the internal field E_i.
OR
Potential Barrier:

The accumulation of negative charges in the p-region and positive charges in the n-region set up a potential difference across the junction. This acts as a barrier and is called potential barrier.

Question 24.
In Young’s double slit experiment, the two slits 0.20 mm apart are illuminated by monochromatic light of wavelength 600 nm. The screen is 1.0 m away from the slits. [2]
(i) Find the distance of the second bright fringe from the central maximum.
(ii) How will the fringe pattern change if the screen is moved away from the slits?
Answer:
Here d = 0.20 mm = 20 x 10^-5m
λ = 600 nm = 600 x 10^-9 m
D = 1.0 m
(i) Distance of the second bright fringe
x² = \(\frac{n \lambda \mathrm{D}}{d}=\frac{2 \lambda \mathrm{D}}{d}\)
= \(\frac{2 \times 600 \times 10^{-9} \times 1.0}{20 \times 10^{-5}}\)
= 60 x 10^-4= 6 x 10^-3 = 6 mm

(ii) When the screen is moved away from the slits, fringes become farther apart as D increases.

Question 25.
(a) Explain the meaning of the statement electric field of a body is quantised. [2]
(b) Why can one ignore quantisation of electric charge when dealing with macroscopic i.e., large scale charges?
Answer:
(a) Electric charge of a body is quantised. This means. that only integrals (1, 2, , n) number of electrons can be transferred from one body to the other charges are not transferred in fraction. Hence a body possesses total charge only in integral multiples of electric charge.

(b) In macroscopic or large scale charges the charges used are huge as compared to the magnitude of electric charge. Hence, quantisation of electric charge is of no use on macroscopic scale. Therefore, it is ignored and it is considered that electric charge is continuous.

Section – C

Question 26.
Find the condition under which the charged particles moving with different speeds in the presence of electric and magnetic field vectors can be used to select charged particles of a particular speed. [3]
Answer:
(i) The velocity \(\vec{v}\) of the charged particles, and the \(\vec{E}\) and \(\vec{B}\) vectors, should be mutually perpendicular.
Also the forces on q, due to \(\vec{E}\) and \(\vec{B}\) must be oppositively directed.

(ii) If magnetic force = Electrostatic force

F_m = F_e
qvB = qE
v = \(\frac { E }{ B }\)

Question 27.

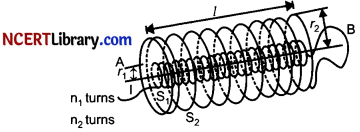

Two long coaxial insulated solenoids, S₁ and S₂ of equal lengths are wound one over the other as shown in the figure. A steady current ‘I’ flow through the inner solenoid S₁ to the other end B, which is connected to the outer solenoid S₂ through which the same current I flows in the opposite direction so as to come out at end A. If n₁ and n₂ are the number of turns per unit length, find the magnitude and direction of the net magnetic field at a point (i) inside on the axis and (ii) outside the combined system. [3]

Answer:
(i) The magnetic field due to a current carrying solenoid :

where, n = number of turns per unit length, i = current through the solenoid.
Now, the magnetic field due to solenoid S₁ will be in the upward direction and the magnetic field due to S₂ will be in the downward direction (by right-hand screw rule).
B_net = B₁ – B₂
B_net = μ₀n₁I – μ₀n₂I
= μ₀I (n₁ – n₂)

(ii) The magnetic field is zero outside a solenoid.

Question 28.
State the principle of an ac generator and explain its working with the help of a labelled diagram. Obtain the expression for the emf induced in a coil having N turns each of cross-sectional area A, rotating with a constant angular speed ‘ω’ in a magnetic field, directed perpendicular to the axis of rotation. [3]
OR

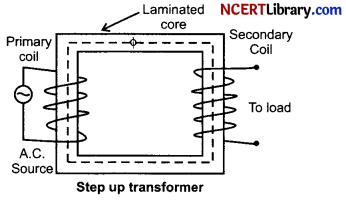

Draw a labelled diagram of a step-up transformer. Obtain the ratio of secondary to primary voltage in terms of number of turns and currents in the two coils.
Answer:

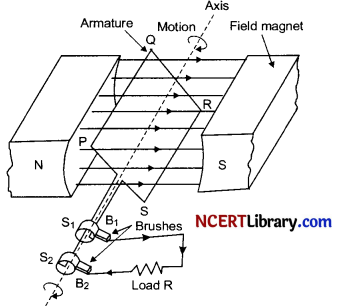

Principle of ac generator : The ac generator is based on the principle of electromagnetic induction. When closed coil is rotated in a uniform field with its axis perpendicular to field, then magnetic flux changes and emf is induced.

Working : When the armature coil rotates, the magnetic flux linked with it changes and produces induced current. If initially, coil PQRS is in vertical position and rotated clockwise, then PQ moves down and SR moves up. By Fleming’s right hand rule, induced current flows from Q to P and S to R which is the first half rotation of coil.

Brush B₁ is positive terminal and B₂ is negative. In second half rotation, PQ moves up and SR moves down. So induced current reverses and the alternating current is produced in this manner by the generator.

Expression for emf induced : If number of turns in coil = N, cross-section = A, angular speed of rotation = ω, magnetic field = \(\overrightarrow{\mathrm{B}}\), then to find emf induced,
Flux through the coil when its normal makes angle θ with the field,
Φ = BA cos θ
When coil rotates with angular velocity co and turns through θ in time t then θ = ωt
⇒ Φ = BA cos ωt
When coil rotates, Φ changes to set an induced emf.
ε = \(\frac { -dΦ }{ dt }\)
= – \(\frac { -d }{ dt }\) (BA cos ωt) dt
= BA ω sin ωt
For N turns, total induced emf,
ε = NBA ω sin ωt
OR
We have,
e_s = – N_s\(\frac { -dΦ }{ dt }\) … (i)
e_p = – N_p\(\frac { -dΦ }{ dt }\) … (ii)

Dividing (i) by (ii), we get
\(\frac{e_s}{e_p}=\frac{\mathrm{N}_s}{\mathrm{~N}_p}\)
According to the law of conservation of energy,
e_sI_s = e_pI_p
\(\frac{e_s}{e_p}=\frac{I_p}{I_{\mathrm{s}}}\)
From equations (iii) and (iv),
\(\frac{e_s}{e_p}=\frac{\mathrm{N}_s}{\mathrm{~N}_p}=\frac{\mathrm{I}_p}{\mathrm{I}_s}\)

Question 29.
Figure shows the stopping potential (V₀) for the photoelectron versus (1/λ.) graph, for two metals A and B, λ being the wavelength of incident light. [3]

(i) How is the value of Planck’s constant determined from the graph?
(ii) If the distance between the light source and the surface of metal A is increased, how will the stopping potential for the electrons emitted from it be effected? Justify your answer.
OR
Light of same wavelength is incident on three photo-sensitive surfaces A, B and C. The following observations are recorded.
(i) From surface A, photo electrons are not emitted.
(ii) From surface B, photo electrons are just emitted.
(iii) From surface C, photo electrons with some kinetic energy are emitted.
Compare the threshold frequencies of the three surfaces and justify your Answer.
Answer:
(i) We know that
eV₀ = \(\frac { hc }{ λ }\) – Φ
or V₀ = \(\frac{h c}{e}\left(\frac{1}{\lambda}\right)-\frac{\phi}{e}\)

where, e = Charge on electron
h = Planck’s contant
Φ = Work function of metal surface
Equation (i) is a straight line as shown in the graph.
Here, slope of line = tan θ = \(\frac { hc }{ e }\)
or h = \(\frac{e \tan \theta}{c}\)
Planck’s constant can easily be determined by substituting the values of the slope of graph, speed of light and electronic charge in equation (ii).

(ii) Stopping potential only depends on frequency of incident light. If the distance is increased, intensity will decrease but no change takes place in stopping potential.
OR
From the observations made (surface A, B and C) on the basis of photoelectric effect:
(i) For surface A, threshold frequency is more than frequency of incident light, so no emission occurs.

(ii) For surface B, threshold frequency is equal to frequency of incident light, so emission just occurs.

(iii) For surface C, the threshold frequency is less than frequency of incident light. So, photo-emission occurs and photo-electron have some K. E.
Threshold frequency is V_A > V_B > V_c.

Question 30.

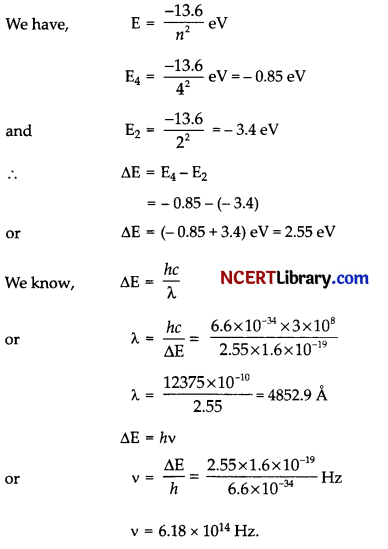

The energy of the lowest level of hydrogen atom is -13.6 eV. Calculate the energy, frequency and wavelength of the photon emitted by transition from n = 2 to n = 4. [3]
Answer:

Section – D

Question 31.
(a) (i) Define electric flux. Is it a scalar or a vector quantity? A point charge q is at a distance of d/2 directly above the centre of a square of side d, as shown in the figure. Use Gauss’ law to obtain the expression for the electric flux through the square.

(ii) If the point charge is now moved to a distance ‘d’ from the centre of the square is doubled, explain now the electric flux will be affected?
(b) Obtain the formula for the electric field due to a long thin wire of uniform linear charge density X without using Gauss’ law. [5]
OR
(a) A charge is distributed uniformly over a ring of radius a. Obtain an expression for the electric intensity E at a point on the axis of the ring. Hence show that for points at large distances from the ring, it behaves like a point charge.

(b) Two charged spherical conductors of radii R₁ and R₂ when connected by a conducting wire acquire charge q2 and q2 respectively. Find the ratio of their surface charge densities in terms of their radii.
Answer:
(a) (i) Electric flux: Electric flux through an area is defined as the product of electric field strength E and area dS perpendicular to the field. It represents the field lines crossing the area. It is a scalar quantity. Imagine a cube of edge d, enclosing the charge. The square surface is one of the six faces of this cube. According to Gauss’ theorem in electrostatics.

Total electric flux through the cube = \(\frac{q}{\varepsilon_0}\)
∴ Electric flux through the square surface = \(\frac{q}{6 \varepsilon_0}\)

(ii) On moving the charge to distance d from the centre of square and making side of square 2d, does not change the flux at all because flux is independent of side of square or distance of charge in this case.

(b) Consider a long thin wire XY of uniform linear charge density X [Fig. (a)].

Take a point P at perpendicular distance l from mid-point O of wire as shown in [Fig. (b)].

Let E be the electric field at point P due to the wire, XY.
Consider a small length element dx on the wire section with OZ = x
Let q be the charge on this piece.
∴ q = λ x
Electric field due to the piece,
dE = \(\frac{1}{4 \pi \varepsilon_0} \cdot \frac{\lambda d x}{(\mathrm{PZ})^2}\)
However, PZ = \(\sqrt{l^2+x^2}\)
∴ dE = \(\frac{1}{4 \pi \varepsilon_0} \cdot \frac{\lambda d x}{\left(l^2+x^2\right)}\)

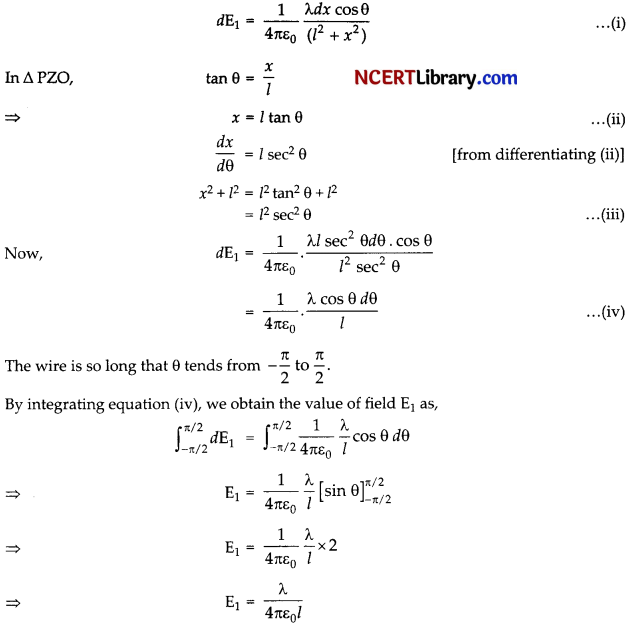

The electric field is resolved into two rectangular components. dE cos θ is the perpendicular component and dE sin θ is the parallel component. When the whole wire is considered, the component dE sin θ is cancelled. Only the perpendicular component dE cos θ affects point P.
Hence, effective electric field at point P due to the element dx is dE₁.

OR

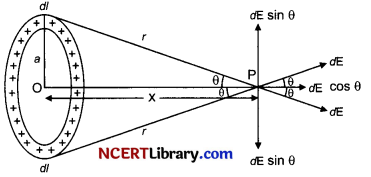

(a) Suppose we have a ring of radius a that carries a uniformly distributed positive charge q.

As the total charge q is uniformly distributed, the charge dq on the element dl is
dq = \(\frac { q }{ 2πa }\).dl
∴ The magnitude of the electric field produced by the element dl at the axial point P is
dE = \(k \cdot \frac{d q}{r^2}=\frac{k q}{2 \pi a} \cdot \frac{d l}{r^2}\)
The electric field dE has two components:

• The axial components dE cos θ and
• The perpendicular component dE sin θ.

Since, the perpendicular component of any two diametrically opposite elements are equal and opposite, they cancel out in pairs. Only the axial components will add up to produce the resultant field.

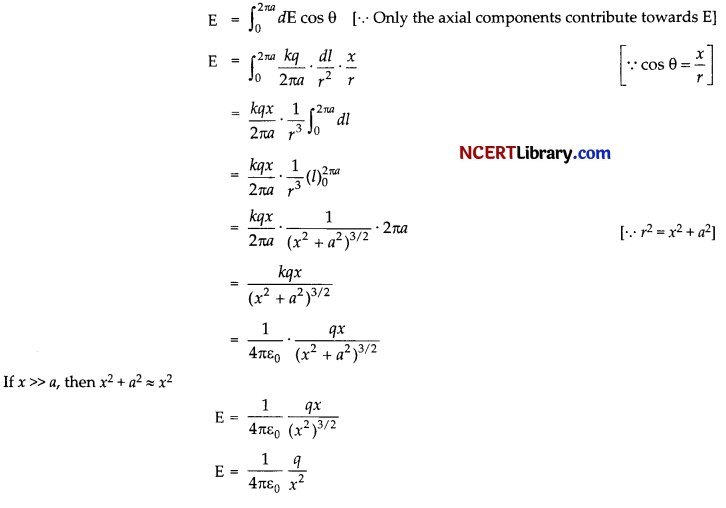

E at point P is given by,

This expression is similar to electric field due to a point charge.

(b) The surface charge density for a spherical conductor of radius R₁ is given by :
σ₁ = \(\frac{q_1}{4 \pi R_1^2}\)
Similarly, for spherical conductor R₂, the surface charge density is given by :
σ₂ = \(\frac{q_2}{4 \pi \mathrm{R}_2^2}\)
∴ \(\frac{\sigma_1}{\sigma_2}=\frac{q_1 \mathrm{R}_2^2}{q_2 \mathrm{R}_1^2}\)

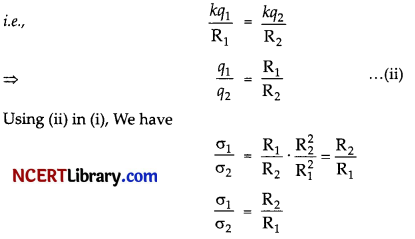

As the spheres are connected so the charges will flow between the spherical conductors till their potential become equal.

Question 32.
(a) Two point charges + Q₁ and – Q₂ are placed r distance apart. Obtain the expression for the amount of work done to place a third charge Q₃ 0at the midpoint of the line joining two charges.
(b) At what distance from charge + Q₁ on the line joining two charges (in terms of Q₁, Q₂ and r) will this work done by zero. [5]
OR
Derive expression for electrostatic potential due to electric field of:
(a) Point charge
(b) Electric dipole
Answer:
According to the question,

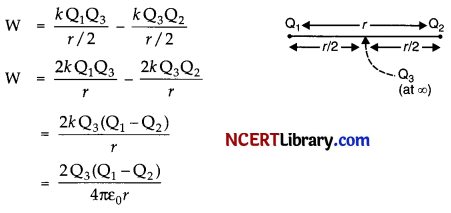

(a) Work done:

(b) For work done to be zero : Work done will be zero for the point where the electric potential is zero consider a point P to be lying in between the two charges, where electric potential is zero. Let the distance of the point P from the charge Q₁ be x.
V = \(\frac{k \mathrm{Q}_1}{x}-\frac{k \mathrm{Q}_2}{(r-x)}\) = 0
⇒ \(\frac{\mathrm{Q}_1}{x}-\frac{\mathrm{Q}_2}{r-x}\) = 0
⇒ r Q₁ – x Q₁ – x Q₂ = 0
⇒ x = \(\frac{r \mathrm{Q}_1}{\left(\mathrm{Q}_1+\mathrm{Q}_2\right)}\)
OR

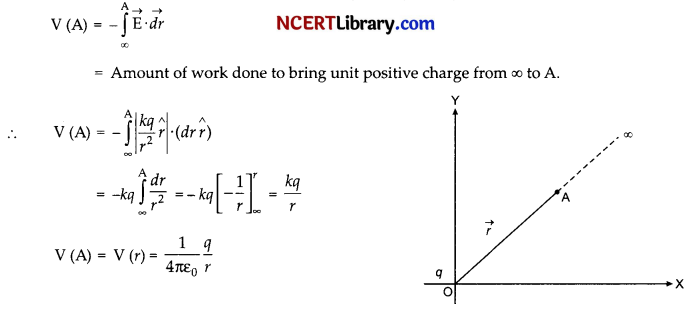

(a) The electric field at any point A having r as its position-vector due to a point charge q placed at the origin of the coordinate system is given by,
\(\overrightarrow{\mathrm{E}}(\vec{r})=\frac{1}{4 \pi \varepsilon_0} \frac{q}{r^2} \hat{r}=\frac{k q}{r^2} \hat{r}\) [∵ k = \(\frac{1}{4 \pi \varepsilon_0}\) = 9 x 10⁹ Nm²/C²]
The electric potential at point A as shown in the figure is given by,

The electric potential is positive if q is positive and negative if q is negative. Hence, for negative charge negative sign should be used for q in the above equation.

(b) Electrostatic potential due to electric dipole: Let the two charges – q and + q be placed at A and B respectively with a distance 2a between them.
Let P be a unit at a distance r from the centre of this dipole and making an angle 0 with its direction such that AP = r₁ and BP = r₂

The electric potential at P is given by
V(r) = \(\frac{1}{4 \pi \varepsilon_0} \frac{q}{r_1}-\frac{1}{4 \pi \varepsilon_0} \frac{q}{r_2}\)

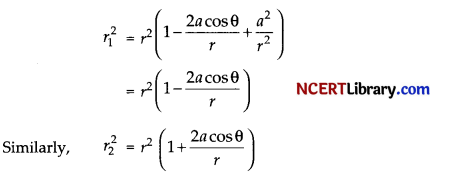

Now, by geometry,
r²₁ = r² + a² – 2ar cos θ
r²₁ = r² + a² + 2ar cos θ
We take r much greater than a(r >> a) and retain terms only upto the first order in \(\frac { a }{ r }\).

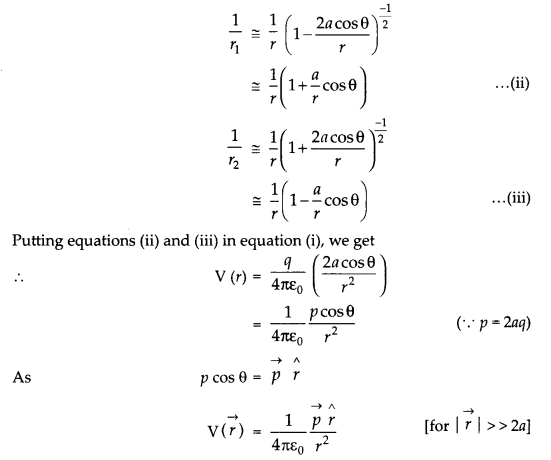

Using the Binomial theorem and retaining terms upto the first order in \(\frac { a }{ r’ }\) we obtain,

Question 33.
(a) When a convex lens of focal length 30 cm is in contact with a concave lens of focal length 20 cm, find out if the system is converging or diverging.
(b) Obtain the expression for the angle of incidence of a ray of light which is incident on the face of a prism of refracting angle A so that it suffers total internal reflection at the other face. (Given the refractive index of the glass of the prism is p) [5]
OR
(a) Draw a ray diagram to show the image formation by a combination of two thin convex lenses in contact. Obtain the expression for the power of this combination in terms of the focal lengths of the lenses.

(b) (i) Draw a ray diagram depicting the formation of the image by an astronomical telescope in normal adjustment.

(ii) You are given the following three lenses. Which two lenses will you use as an eyepiece and as an objective to construct an astronomical telescope? Give reason.

Lenses	Power (D)	Aperture (cm)
L1	3	8
L2	6	1
L3	10	1

Answer:
(a) f₁ = f_convex = 30 cm
f₂ = f_concave = – 20 cm
\(\frac{1}{f}=\frac{1}{f_1}+\frac{1}{f_2}\)
\(\frac{1}{30}-\frac{1}{20}=\frac{2-3}{60}\)
\(\frac { 1 }{ f }\) = – \(\frac { 1 }{ 60 }\) [∵ concave (diverging) lens]

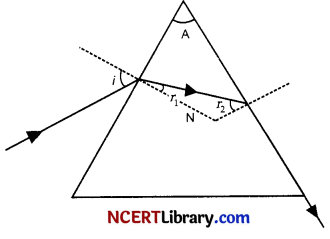

(b) Let C is the critical angle,

sin C = \(\frac { 1 }{ μ }\)
r₂ = C(for total internal reflection)
r₁ + r₂ = A
r₁ + C = A
r₁ = A – C
μ = \(\frac{\sin i}{\sin r_1}\)
⇒ sin i = μ sin r₁
sin i = μ sin (A-C)
i = sin^-1[μ sin(A – C)]
i = sin^-1\(\left[\frac{\sin (A-C)}{\sin C}\right]\)

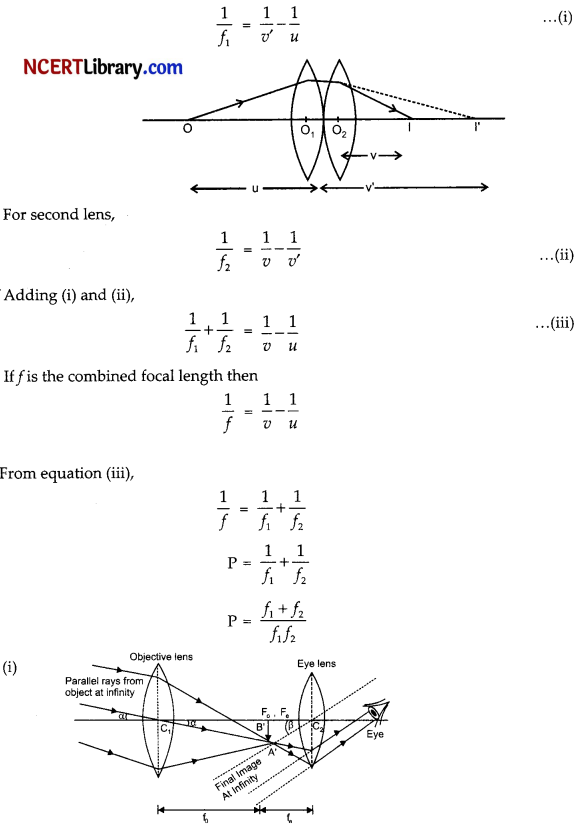

(a) For first lens,

(ii) An astronomical telescope should have an objective of large aperture and longer focal length while an eyepiece of small aperture and small focal length.
Therefore, we will use L₁ as an objective and L₃ as an eyepiece.

Section – E

Question 34.
Case Study:
Read the following paragraph and answer the questions.
Diffraction of light: The diffraction of light takes place when an object or obstacle comes in the path of light. In this phenomena bending of light takes place around the edges of the obstacle. The bending of light from its path is larger when the size of the obstacle is comparable to the wavelength of light. [4]

It we place a narrow slit in the path of wavefront of light, then bending of diffracted wavefront will be more. The diffraction of sound waves also takes place. For visible light, diffraction can happen when an object of λ ≈ 10^-6 m order comes in its path.
(i) Name the phenomenon of bending of light around the edge.
(ii) State the condition for which the diffraction of an incident wave will not happen.
(iii) How does diffraction of light affected when a narrow slit is placed in the path of light source?
OR
(iii) How does the diffraction of light depend on the size of the aperture?
Answer:
(i) Diffraction of light

(ii) When size of aperture will be very large as compare to wavelength, of light the diffraction of light will not occur.

(iii) If we place a narrow slit having width less than the wavelength of light, then the bending of diffracted wavefront will be more.
OR
(iii) The diffraction of light increases as the size of aperture decreases.

Question 35.
Case Study: p-n Junction diode
Read the following paragraph and answer the questions.
A silicon p-n junction diode is connected to a resistor R and a battery of voltage V_B through milliammeter (mA) as shown in figure. The knee voltage for this junction diode is V_N = 0.7 V. The p-n junction diode requires a minimum current of 1 mA to attain a value higher than the knee point on the I-V characteristics of this junction diode. Assuming that the voltage V across the junction is independent of the current above the knee point.

A p-n junction is the basic building block of many semiconductor devices like diodes. Important process occurring during the formation of a p-n junction are diffusion and drift. In an n-type semiconductor concentration of electrons is more as compared to holes. In a p-type semiconductor concentration of holes is more as compared to electrons.

(i) If V_B = 5 V, calculate the maximum value of R so that the voltage V is above the knee point voltage.
(ii) If V_B = 5 V, evaluate the value of R in order to establish a current to 6 mA in the circuit.
(iii) If V_B = 6 V, calculate the power dissipated in the resistor R, when a current of 6 mA flows in the circuit.
OR
(iii) When the diode is reverse biased with a voltage of 6V and V_bi = 0.63 V. Calculate the total potential. [4]
Answer:
(i) Voltage drop across R.
V_R = V_B – V_N = 5 – 0.7 = 4.3V
Here I_min = 1 x 10^-3 A
R_max = \(\frac{V_R}{I_{\min }}=\frac{4.3}{1 \times 10^{-3}}=4.3 \times 10^3 \Omega\) = 4.3 kW

(ii) I = 6 mA = 6 x 10^-3 A
V_R = V_B – V_N = 5 – 0.7 = 4.3V
R = \(\frac{V_R}{I}=\frac{4.3}{6 \times 10^{-3}}\) = 717 Ω

(iii) Here, V_B = 6 V; V_N = 0.7 V,
V_R = 6 – 0.7 = 5.3 V
Power dissipated in R = I x V_R
= (6 x 10^-3) x 5.3 = 31.8 x 10^-3 W
= 31.8 mW

(iii) V_t = V_bi + V_R = 0.63 + 6 = 6.63 V.
