CBSE Sample Papers for Class 12 Maths Set 5 with Solutions

Practicing the CBSE Sample Papers for Class 12 Maths with Solutions Set 5 allows you to get rid of exam fear and be confident to appear for the exam.

CBSE Sample Papers for Class 12 Maths Set 5 with Solutions

Time : 3 Hours
Maximum Marks: 80

General Instructions :

1. This question paper contains five sections – A. B. C. D and E. Each section is compulsory. However, there are internal choices in some questions.
2. Section – A has 18 MCQ’s and 02 Assertion-Reason based questions of 1 mark each.
3. Section – B has 5 Very Short Answer (VSA)-type questions of 2 marks each.
4. Section – C has 6 Short Answer (SA)-type questions of 3 marks each.
5. Section – D has 4 Long Answer (LA)-type questions of 5 marks each.
6. Section – E has 3 source based/case based/passage based/integrated units of assessment (4 marks each) with sub parts.

Section – A
(Multiple Choice Questions)
Each question carries 1 mark

Question 1.
If x is real, then the minimum value of x² – 8x + 17 is:
(a) – 1
(b) 0
(c) 1
(d) 2
Solution:
(c) 1
Explanation:
Let f(x) = x² – 8x + 17
f’(x) = 2x – 8
So, f’(x) = 0, gives x = 4
Now, f”(x) = 2 > 0, ∀ x
So, x =4 is the point of local minima.
∴ Minimum value of
f(x) = at x = 4.
f(4) = 4 x 4 – 8 x 4 + 17 = 1.

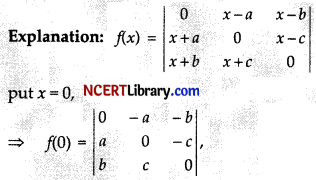

Question 2.

(a) f(a) = 0
(b) f(b) = 0
(c) f(0) = 0
(d) f(1) = 0
Solution:
(c) f(0) = 0

which is skew-symmetric determinant of order 3
Hence, f(0) = 0

Question 3.

then which of the following is defined?
(a) A + B
(b) B + C
(c) C + D
(d) B + D
Solution:
(d) B + D

Explanation: Only B + D is defined because matrices of the same order can only be added.

Question 4.
The degree of the differential equation

(a) 1
(b) 2
(c) 3
(d) Not defined
Solution:
(d) Not defined

Explanation: The given differential equation is not a polynomial equation in terms of its derivatives, so its degree is not defined.

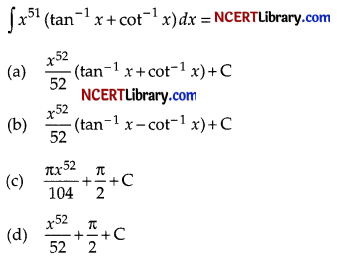

Question 5.

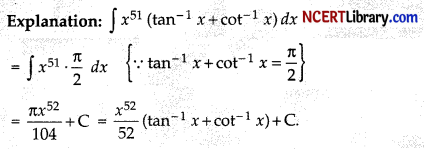

Solution:

Question 6.
The number of points at which the function f(x) = \(\frac { 1 }{ x – [x] }\) where [.] denotes the greatest integer function is not continuous, is:
(a) 1
(b) 2
(c) 3
(d) None of these
Solution:
(d) None of these

Explanation: x – [x] = 0 when x is an integer, so that f(x) is discontinuous for all x ∈ I i.e., f(x) is discontinuous at infinite number of points.

Question 7.
The greatest value of 5 sin² x + 7 cos² x – 4 sin x cos x will be:
(a) 6 – \(\sqrt{5}\)
(b) 6 + \(\sqrt{5}\)
(c) – 6 + \(\sqrt{5}\)
(d) – 6 – \(\sqrt{5}\)
Solution:
(b) 6 + \(\sqrt{5}\)

Explanation: y = 5 sin² x + 7 cos² x – 4 sin x cos x
= (2 sin x – cos x)² + sin² x +6 cos² x
= (2 sin x – cos x)² + (sin² x + cos² x) + 5 cos² x

= 6 + \(\sqrt{5}\)

Question 8.
Feasible region in the set of points which satisfy:
(a) The objective functions
(b) Some of the given functions
(c) All of the given constraints
(d) None of these
Solution:
(c) All of the given constraints

Explanation: Feasible region is the set of points which satisfies all the given constraints.

Question 9.
The matrix

is not a:
(a) square matrix
(b) diagonal matrix
(c) unit matrix
(d) none of these
Solution:
(c) unit matrix

Explanation: If square matrix in which all diagonals elements are 1 and rest are 0, is called unit matrix.

Question 10.
Find the integral of \(\sqrt{u}\) + \(\frac{1}{\sqrt{u}}\)
(a) \(\frac { 2 }{ 3 }\)u^3/2 + 2u^1/2 + C
(b) \(\frac { 2 }{ 3 }\)u^3/2 – 2u^1/2 + C
(c) – \(\frac { 2 }{ 3 }\)u^3/2 – 2u^1/2 + C
(d) – \(\frac { 2 }{ 3 }\)u^3/2 + 2u^1/2 + C
Solution:
(a) \(\frac { 2 }{ 3 }\)u^3/2 + 2u^1/2 + C

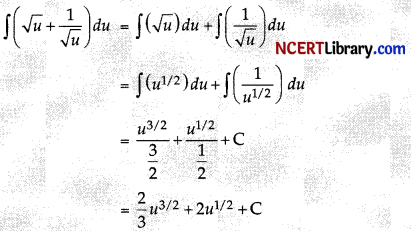

Explanation:

Question 11.
Which of the term is not used in a linear programming problem?
(a) Optimal solution
(b) Feasible solution
(c) Concave region
(d) Objective function
Solution
(c) Concave region

Explanation Optimal solution, feasible solution and objective function are the terms used in linear programming problem.

Question 12.
The domain of the function cos^-1 (2x – 1) is:
(a) [0, 1]
(b) [- 1, 1]
(c) ( – 1, 1)
(d) [0, π]
Solution:
(a) [0, 1]

Explanation: We know that cos^-1 x is defined for x ∈ [- 1, 1]
∴ f(x) = cos^-1 (2x – 1) is defined if
– 1 ≤ 2x – 1 ≤ 1
0 ≤ 2x ≤ 2
0 ≤ x ≤ 1.

Question 13.
Minor of an element of a determinant of order n(n ≥ 2) is a determinant of order:
(a) n
(b) n – 1
(c) n – 2
(d) n + 1
Solution:
(b) n – 1

Explanation: Minor of an element is the determinant obtained by leaving the elements of the column and row containing that element. Therefore, minor of an element of a determinant of order n is a determinant of order n – 1.

Question 14.
If A is a 3 x 2 matrix, B is a 3 x 3 matrix and C is a 2 x 3 matrix, then the elements in A, B and C are respectively:
(a) 6, 9, 8
(b) 6, 9, 6
(c) 9, 6, 6
(d) 6, 6, 9
Solution:
(b) 6, 9, 6

Explanation: The number of elements in m x n matrix is equal to mn.
∴ elements in A = 3 x 2 = 6
∴ elements in B = 3 x 3 = 9
∴ elements in C = 2 x 3 = 6

Question 15.
The order and degree of differential equation
are
(a) 2, \(\frac { 3 }{ 2 }\)
(b) 2, 3
(c) 2, 1
(d) 3, 4
Solution:
(c) 2, 1
Explanation: Given that,

∴Order = 2 and degree = 1.

Question 16.
The function f(x) = tan x is discontinuous on the set:
(a) { x = nπ : n ∈ Z}
(b) { x = 2nπ : n ∈ Z}
(c) { x = (2n+1)\(\frac { π }{ 2 }\) : n ∈ Z}
(d) { x = \(\frac { nπ }{ 2 }\) : n ∈ Z}
Solution:
(c) { x = (2n+1)\(\frac { π }{ 2 }\) : n ∈ Z}

Explanation: when tan (2n + 1)\(\frac { π }{ 2 }\) = tan (nπ + \(\frac { π }{ 2 }\)) = – cot nπ
It is not defined at the integral points (n∈Z)
Hence, f(x) is discontinuous at (2n + 1) \(\frac { π }{ 2 }\)

Question 17.
Which one of the following is correct in respect of the function, f(x) = x³ sin x?
(a) It has local maximum at x = 0
(b) It has local minimum at x = 0
(c) It has neither maximum nor minimum at x = 0
(d) It has maximum value as 1
Solution:
(b) It has local minimum at x = 0

Explanation:
Given f(x) = x³ sin x
f’(x) = x³ cos x – 3x² sin x
Now, f”(x) = – x³ sinx + 3 x² cosx – 3x² cosx – 6x sinx
For critical points, f ‘(x) = 0
⇒ x³ cos x – 3x² sin x = 0
⇒ x² (x cos x – sin x) = 0
At x = 0
⇒ f” (x) = 0
⇒ Function has local minimum at x = 0

Question 18.
The general solution of the differential equation \(\frac { dy }{ dx }\) = cot x cot y is:
(a) cos x = C cosec y
(b) sin x = C sec y
(c) sin x – C cos y
(d) cos x = C sin y
Solution:
(b) sin x = C sec y

Explanation:
\(\frac { dy }{ dx }\) = cot x cot y
cot x dx – tan y dy = 0

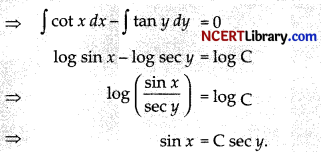

Integrating on both sides, we get

Assertion-Reason Based Question
In the following questions, a statement of assertion (A) is followed by a statement of Reason (R).
Choose the correct answer out of the following choices.
(a) Both A and R are true and R is the correct explanation of A.
(b) Both A and R are true but R is not the correct explanation of A.
(c) A is true but R is false.
(d) A is false but R is true.

Question 19.
Assertion (A): Values of k for which area of the triangle with vertices (1, 1), (0, 2), (k, 0) is 3 sq. units are and 8.
Reason : Area of the triangle with vertices (x₁, y₁) (x₂, Y₂) (x₃, y₃) is

Solution:
(d) A is false but R is true.
Explanation: A is false but R is true.
Area of triangle with vertices (1, 1), (0, 2), (k, 0) is 3 sq. units.

⇒1(2 – 0) – 1(0 – k) + 1(0 – 2k) – 6
⇒2 + k – 2k = 6
⇒ – k = 6 – 2
⇒ k = 4
∴ Value of k is : 4.

Question 20.
Assertion (A): The scalar product of a force \(\vec{F}\) and displacement \(\vec{r}\) is equal to the work done.
Reason (R) : Work done is not a scalar.
Solution:
(c) A is true but R is false.

Explanation:
∵Work done, W = \(\vec{F}\) . \(\vec{r}\)
∴Work done is a Scalar quantity.

Section – B
This section comprises of very short answer type-questions (VSA) of 2 marks each

Question 21.

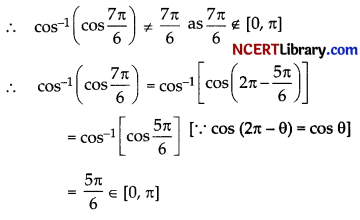

Write the values of cos^-1 (cos\(\frac { 7π }{ 6 }\))
OR
Using principal values, evaluate tan^-1 (1) + sin^-1 (-\(\frac { 1 }{ 2 }\))
Solution:
We know that the principal value of cos¹ θ is [0, π]

OR
Principal value of tan¹ θ is (- \(\frac { π }{ 2 }\), \(\frac { π }{ 2 }\)) and that of sin¹ θ is [- \(\frac { π }{ 2 }\), \(\frac { π }{ 2 }\)]
∴tan^-1 (1) + sin^-1(-\(\frac { 1 }{ 2 }\))
= tan^-1 (tan\(\frac { π }{ 4 }\) + sin^-1 (-sin\(\frac { π }{ 6 }\))
= tan^-1 tan(\(\frac { π }{ 4 }\) + sin^-1sin (-\(\frac { π }{ 6 }\))
= \(\frac { π }{ 4 }\) – \(\frac { π }{ 6 }\) = \(\frac { π }{ 12 }\)

Question 22.
If the radius of a sphere is measured as 9 cm with an error of 0.03 cm, then find the approximate error in calculating its volume.
Solution:
Let r be the radius of the sphere and ¿r be the error in measuring the radius. Then r = 9 cm and
∆ r = 0.03 cm. Now, the volume V of the sphere is given by
V = \(\frac { 4 }{ 3 }\) πr³
\(\frac { dV }{ dr }\) = 4πr²
dV = (\(\frac { dV }{ dr }\))∆ r = (4πr²) ∆ r
= 4π(9)² (0.03)
= 9.72π cm³
Thus, the approximate error in calculating the volume is 9.72 it cm³.

Question 23.
An expensive square piece of golden colour board of side 24 centimetres, is to be made into a box by cutting a square from each comer and folding the flaps to form a box. What should be the side of the square piece to be cut from each comer of the board to hold maximum volume and minimize the wastage?

OR

Find the intervals in which the furictionflx) = \(\frac{x^4}{4}\) – x³ – 5x² + 24x +12 is (i) strictly increasing, (ii) strictly decreasing.
Solution:
Let length of a side of the square cut out = x cm
Volume, V = (24 – 2x)² . x
\(\frac{dV}{dx}\) = 2(24 – 2x) ( – 2)x + (24 – 2x)²
= (24 – 2x)( – 4x + 24 – 2x)
= (24 – 2x) (24 – 6x)
= 12 (12 – x)(4 – x)
Put \(\frac{dV}{dx}\) = O i.e., (12 – x) (4 – x) = 0
Since, x ≠ 12,
∴ x = 4
Hence, the volume will be maximum when length of a side of the square cut out = 4 cm.

OR

Given function is
f(x) = \(\frac{x^4}{4}\) – x³ – 5x² + 24x + 12
f'(x) = \(\frac{4x^3}{4}\) – 3x² – 10x² + 24
For critical points, put f’(x) = 0
∴ x³ – 3x² – 10x + 24 = 0
(x – 2)(x² – x – 12) = 0
(x – 2)(x – 4) (x + 3) = 0
⇒x = 2, 4, – 3
Therefore, we have the intervals (- ∞, – 3), (- 3, 2), (2, 4) and (4, ∞).

Since f'(x) >0 in ( – 3, 2) ∪ (4, ∞).
∴ f(x) is increasing in interval ( – 3, 2) ∪ (4, ∞).
And
f'(x) < 0 in (- ∞, – 3)∪(2, 4)
∴ f(x) is decreasing in (- ∞, – 3) ∪ (2, 4).

Question 24.
Solve the following differential equation:
e^x tan y dx + (- ∞, – 3) sec² y dy = 0
Solution:
Given differential equation is,
e^x tan y dx + (- ∞, – 3) sec² y dy = 0
(1 – e^x) sec² y dy = – tan y dx
⇒\(\frac{\sec ^2 y}{\tan y}\) dy = \(\frac{e^x}{1-e^x}\) dx
Integrating both sides
log |tan y | = log |1 – e^x| + C [∵∫\(\frac{f^{\prime}(x)}{f(x)}\) = log |f(x) + C]
log |tan y| – log |1 – e^x| = C
log |\(\frac{\tan y}{1-e^x}\)| = C
\(\frac{\tan y}{1-e^x}\) = e^C
tan y = e^C (1 – e^x)
which is the required solution

Question 25.
In a kite festival, a kite is at a height of 120 cm and 130 m string is out. If the kite is moving horizontally at the rate of 5.2 m/sec, find the rate at which the string is being pulled out at that instant.
Solution:
Let at any instant,
Length of string = y m
and horizontal distance of the kite = x m
then \(\frac { dx }{ dt }\) = 5.2 m/sec
Then, y² = x² + (120)²
Differentiate above equation w.r.t. t
2y . \(\frac { dy }{ dt }\) = 2x . \(\frac { dx }{ dt }\)

\(\frac { dy }{ dt }\) = \(\frac { x }{ y }\) . \(\frac { dx }{ dt }\) = \(\frac { x }{ y }\) (5.2) …………..(i)
y = 130m, then
x = \(\sqrt{(130)^2-(120)^2}\)
= \(\sqrt{2500}\)
= 50 m
Hence the rate at which the string is being pulled out at the instant when string’s length is 130 m.
\(\frac { 50 }{ 130 }\) x (5.2)
= \(\frac { 5×52 }{ 130 }\) = 2 m/sec

Section C
This section comprises of short answer type questions (SA) of 3 marks each

Question 26.

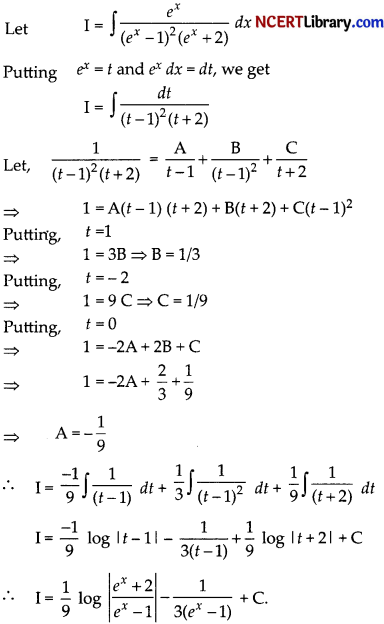

Evaluate

Solution:

Question 27.
A black and a red die are rolled together. Find the conditional probability of obtaining the sum 8, given that the red die resulted in a number less than 4.

OR

A bag contains 4 balls. Two balls are drawn at random (without replacement) and are found to be white. What is the probability that all balls in the bag are white?
Solution:
Let A be event that the sum of observations is 8.
∴ A = {(2, 6), (3, 5), (5, 3), (4, 4), (6, 2)}
n(A) = 5
=> P(A) = \(\frac { 5 }{ 36 }\)
Let B be event that the observation on red die is less than 4.
∴ B = {(1, 1), (2, 1), (3, 1), (4, 1), (5, 1), (6, 1), (1, 2), (2, 2), (3, 2), (4, 2), (5, 2), (6, 2), (1, 3), (2, 3), (3, 3), (4, 3),
(5, 3), (6, 3)}
n(B) = 18
P(B) = \(\frac { 18 }{ 36 }\) = \(\frac { 1 }{ 2 }\)
Clearly A ∩B = {(5,3),(6,2)}
∴ n(A∩B) = 2
∴ P (A∩B) = \(\frac { 2 }{ 36 }\) = \(\frac { 1 }{ 18 }\)
P(A/B) = \(\frac { P (A∩B) }{ P(B) }\) = \(\frac{\frac{1}{18}}{\frac{1}{2}}\)
\(\frac { 2 }{ 18 }\) = \(\frac { 1 }{ 9 }\)

OR

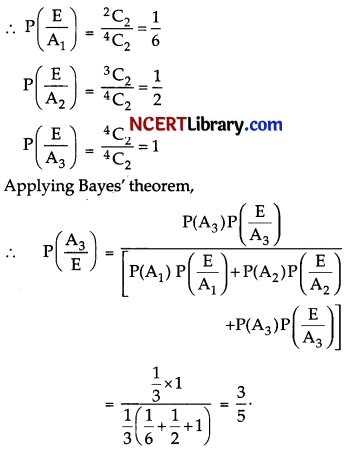

There are three possible cases. Thy are:
A₁ : The bag has 2 white balls and 2 balls of other colour
A₂ : The bag has 3 white balls and 1 ball of other coloux
A₃ : The bag has 4 white balls
Now, P(A₁) = P(A₂) = P(A₃) = \(\frac { 1 }{ 3 }\)
Let E be the event of selecting 2 white balls.

Question 28.
Evaluate ∫\(\frac{d x}{x\left(x^5+3\right)}\)
OR

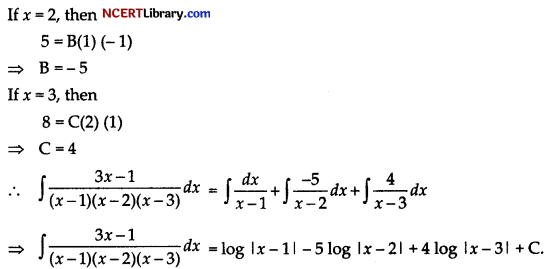

Evaluate ∫\(\frac{3 x-1}{(x-1)(x-2)(x-3)}\) dx
Solution:
Let I = ∫\(\frac{d x}{x\left(x^5+3\right)}\)
Multiplying num. and deno. by x₄
∫\(\frac{x^4}{x^5\left(x^5+3\right)}\)dx
Put
x₅ = t
Differentiate both sides w.r.t.x
5x₄ = \(\frac { dt }{ dx }\)
⇒ dx = latex]\frac{d t}{5 x^4}[/latex]

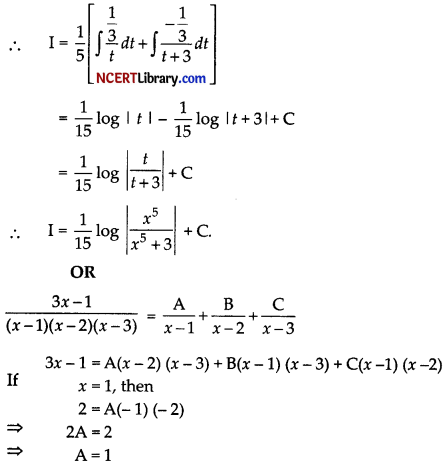

∴ I = \(\frac { 1 }{ 5 }\) ∫\(\frac{d t}{x^5(t+3)}\)
= \(\frac { 1 }{ 5 }\) ∫\(\frac{d t}{t(t+3)}\)
\(\frac{1}{t(t+3)}\) = \(\frac { A }{ t }\) + \(\frac { B }{ t+3 }\)
⇒ 1 = A (t + 3) + Bt
If t = 0
1 = 3A
⇒ A = \(\frac { 1 }{ 3 }\),
If t = – 3
1 = – 3B
⇒ B = – \(\frac { 1 }{ 3 }\)

Question 29.
Solve the following differential equation:
(1 + x²)\(\frac { dy }{ dx }\) + y = tan^-1 x.

OR

Solve the differential equation,
x log x \(\frac { dy }{ dx }\) + y = 2 log x
Solution:
Given differential equation is,
(1 + x²) \(\frac { dy }{ dx }\) + y = tan^-1 x
Divide by (1 + x²) in above equation, we get
\(\frac { dy }{ dx }\) + \(\frac{1}{1+x^2}\)y = \(\frac{\tan ^{-1} x}{1+x^2}\) …………. (i)
The above equation is of the form \(\frac { dy }{ dx }\) + Py = Q
Where, P = \(\frac{1}{1+x^2}\) and Q = \(\frac{\tan ^{-1} x}{1+x^2}\)

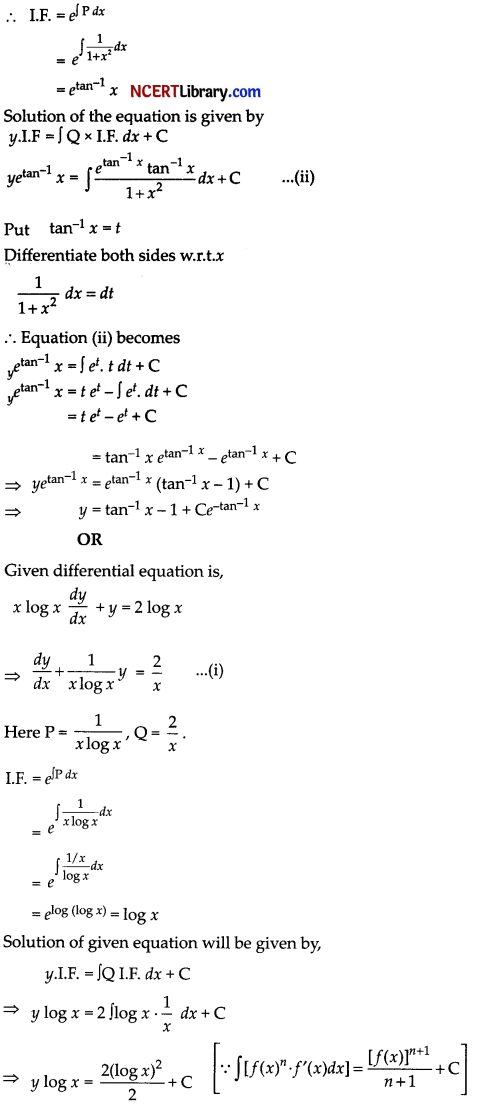

Question 30.
Find graphically, the maximum value of Z = 2x + 5 subject to constraints given below:
2x + 4y ≤ 8
3x + y ≤ 6
x+y ≤ 4
x ≥ 0, y ≥ 0
Solution:
We first convert the inequalities into equations to obtain Lines
2x + 4y = 8 ……………(i)
3x + y = 6 ………….(ii)
x + y = 4 …….(iii)
x = 0
and
y = 0
We need to maximize the objective function
Z = 2x + 5y

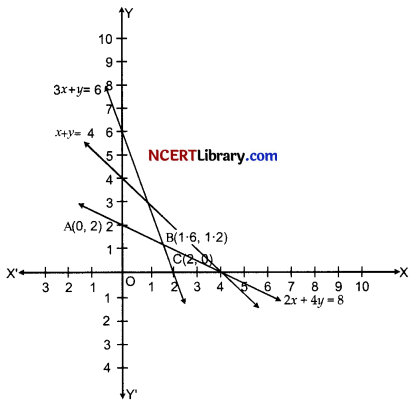

These lines are drawn and the feasible region of the L,P.P. is the shaded region.
The point of intersection of equations (i) and (ii) is B(16, 1.2).
The coordinates of the corner points of the feasible region are 0(0, 0), A(0, 2), B(16, 12) and C(2, O).

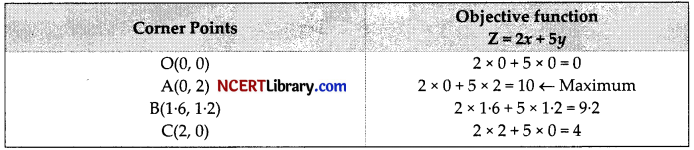

The value of the objective function at these points are given in the following table:

Out of these values of Z, the maximum value of Z is 10 which is attained at the point (0, 2). Thus the
maximum value of Z is 10.

Question 31.
Find:
∫\(\frac{e^x}{\left(e^x-1\right)^2\left(e^x+2\right)}\)
Solution:

Section – D
(This section comprises of long answer – type questions (LA) of 5 marks each)

Question 32.
In a girls hostel, 60% of the student read Hindi newspaper, 40% read English newspaper and 20% read both Hindi and English newspaper. A student is selected at random.
(i) Find the probability that she reads neither Hindi nor English newspaper.
(ii) If she reads Hindi newspaper, find the probability that she reads English newspaper.
(iii) If she reads English newspaper, find the probability that she reads Hindi newspaper.
Solution:
Let H denote the event that students who read Hindi newspaper and E denote the students who read
English newspaper
It is given that,
P(H) = 60% = \(\frac { 60 }{ 100 }\) = \(\frac { 3 }{ 5 }\)
P(E) = 400% = \(\frac { 40 }{ 100 }\) = \(\frac { 2 }{ 5 }\)
P (H ∩ E) = 20% = \(\frac { 20 }{ 100 }\) = \(\frac { 1 }{ 5 }\)

(i) Probability that a student reads neither Hindi nor English newspaper is
P(H∪E)’= 1 – P(H∪E)
= 1 – [P(H) + P(E) – P(H∩E)
= 1 – {\(\frac { 3 }{ 5 }\) + \(\frac { 2 }{ 5 }\) – \(\frac { 1 }{ 5 }\)}
= 1 – \(\frac { 4 }{ 5 }\) = \(\frac { 1 }{ 5 }\)

(ii) Probability that a randomly chosen student reads English newspaper if she reads a Hindi newspaper is

(iii) Erobability that a randomly chosen student reads Hindi newspaper if she reads a English newspaper is

Question 33.

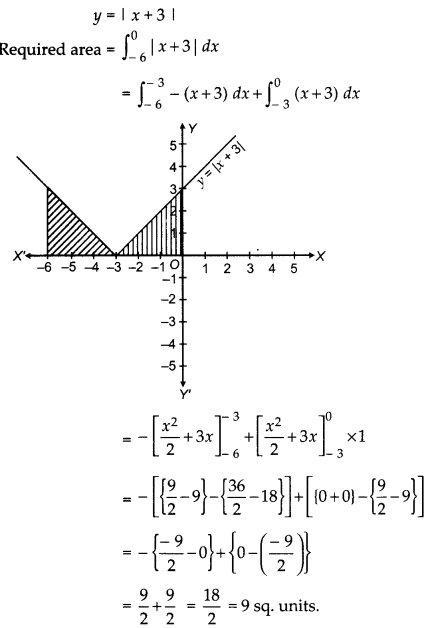

Sketch the graph of y = |x + 3| and evaluate:

Solution:
Given

Question 34.
If S is the set of all real numbers which satisfy the function f(x) = \(\frac{2 x+1}{2 x^3+3 x^2+x}\) >0, then find all the values from the set S.

OR

Show that the relation R defined on the set A of all triangles in a plane as R = {(T₁, T₂) : T₁ is congruent to T₂) is an equivalence relation.
Solution:

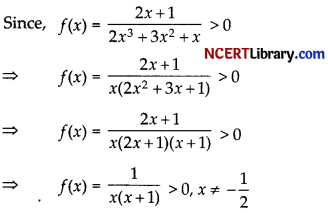

Since,

[∵ (2x + 1) cancels out in the numerator and denominator]
By using the sign rule (or otherwise) we can now find out the region on the number line where
\(\frac{1}{x(1+x)}\) >0 will be true. The region is – ∞ to – 1 and 0 to ∞, where neither – 1 nor 0 are included in the solution set. Hence, we write the solution as:
f(x) ∈ ( – ∞, – 1)∪(0, ∞)

OR

Given, R = {(T₁, T₂) : T₁ is congruent to T₂}
Reflexivity: Let(T,T) ∈ R, ∀ T ∈ A

Since every triangle is congruent to itself
i.e., R is reflexive.
Symmetric: Let (T₁, T₂) E R
then, T₁ is congruent to T₂
T₂ is congruent to T₁
⇒ (T₂, T₁) ∈ R
So, R is symmetric.
Transitivity: let T₁, T₂, T₃ ∈ A such that (T₁, T₂) ∈ R and (T₂, T₃) ∈ R. Then,
T₁ is congruent to T₂ and T₂ is congruent to T₃
T₁ is congruent to T₃
(T₁, T₃) ∈ R
So, R is transitive.
Hence, R is an equivalence relation on set A.

Question 35.
Prove that the lines whose direction cosines are given by al + bm + cn = 0 and fmn + gnl + hlm = 0 are
(i) perpendicular if \(\frac { f }{ a }\) + \(\frac { g }{ b }\) + \(\frac { h }{ c }\) = 0 and
(ii) parallel if a²f² + b²g² + c²h² – 2(bcgh + cahf + abfg) = 0.
Find the image of the point (1, 6, 3) on the line \(\frac { x }{ 1 }\) = \(\frac { y-1 }{ 2 }\) = \(\frac { z-2 }{ 3 }\) Also, write the equation of the line joining the given points and its image and find the length of segment joining given point and its image.
Solution:
Given that
al + bm + cn = 0 ………….(i)
and fmn + gnl + hlm = 0 ……….(ii)
From(i),
al + bm = – cn
⇒ n = – (\(\frac { al+bm }{ c }\)) ………………..(iii)
Substituting this value of n in (ii), we get
(fm + gl) (-\(\frac { al+bm }{ c }\)) + hlm = 0
⇒ – (fm + gl) (al + bm) + hlmc = 0
⇒ – aflm – agl² – bfm² – bglm + chlm = 0
⇒ agl² + (af + bg – ch)lm + bfm² = 0
We not that both l and m cannot be zero.
For, if l = m = 0
Then from (iii), we get n = 0
Which is wrong as l² + m² + n² = 1
So, without any loss of generality we may take m ≠ 0.
Dividing both sides of (iv) by m², we get
ag(\(\frac { l }{ m }\))² + (af + bg – ch) (\(\frac { l }{ m }\)) + bf = 0 …………(v)
The above equation is quadratic in (\(\frac { l }{ m }\)) giving two values of (\(\frac { l }{ m }\)).
If (1₁,m₁, n₁) and (l₂, m₂, n₂) are the direction cosines of the two given lines (i) and (ii), then \(\frac{l_1}{m_1}\), \(\frac{l_2}{m_2}\) are roots of equation (v).

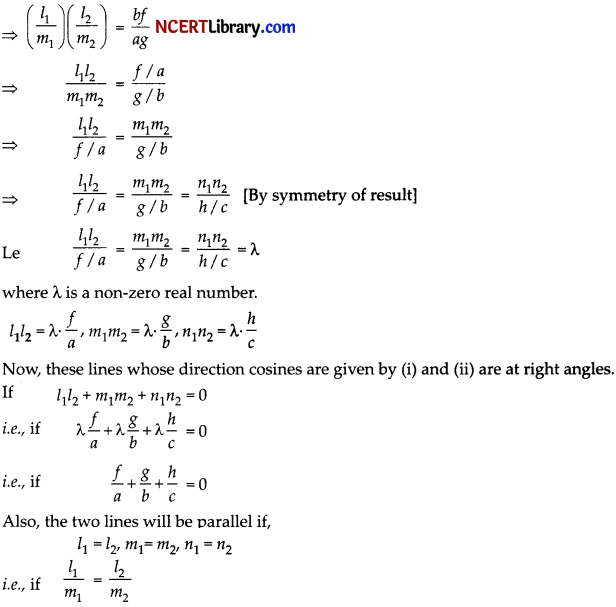

Therefore, product of root = \(\frac { bf }{ ag }\)

i.e., if equation (v) has equal roots.
i.e., if discriminant of (v) is zero.
i.e., if (af + bg – ch)² – 4agbf = 0
i.e., if a²f² + b²g² + c²h² + 2abfg – 2bgch – 2afch – 4agbf = 0
i.e., if a² + b²g² + c²h² – 2(bcgh + cahf + abfg) = 0.

OR

Here, T is the image of point P(1, 6, 3). Q is the foot of perpendicular PQ on the line AB.
First, we find Q.
Equation of line AB is given by
\(\frac { x }{ 1 }\) = \(\frac { y – 1 }{ 2 }\) = \(\frac { z – 2 }{ 3 }\)
Let \(\frac { x }{ 1 }\) = \(\frac { y – 1 }{ 2 }\) = \(\frac { z – 2 }{ 3 }\) = λ(say)
⇒ x = λ, y – 1 = 2λ, z – 2 = 3λ
⇒ x = λ, y = 2λ + 1, z = 3λ + 2

Q = (λ, 2λ + 1, 3λ + 2) ………….(ii)
Now, direction ratios of the
PQ = (λ-1, 2λ + 1 – 6, 3λ + 2 – 3)
∴Direction ratios of PQ = (λ -1, 2λ – 5, 3λ + 3λ – 1)
PQ ⊥AB
∴a₁a₂ + b₁b₂ + c₁c₂ = 0
Where a₁ = λ – 1, b₁ =2λ – 5 ,c₁ = 3λ – 1
and a₂ = 1, b₂ = 2, c₂ = 3
1(λ – 1) + 2(2λ – 5) + 3(3λ – 1) = 0
λ – 1 + 4λ – 10 + 9λ – 3 = 0
14λ – 14 = 0
λ = 1
Putting λ = 1 in equation (ii), we get
Q(1, 2 + 1, 3 + 2) = (1, 3, 5)
Now, as discussed earlier Q is the mid-point of PT.
Let coordinates of T = (x, y, z)
∴ Using by mid-point formula,
Q = Mid-point of P(1, 6, 3) and T(x, y, z)
= (\(\frac { x + 1 }{ 2 }\), \(\frac { y + 6 }{ 2 }\), \(\frac { z + 3 }{ 2 }\))
But Q = (1, 3, 5)
(\(\frac { x + 1 }{ 2 }\), \(\frac { y + 6 }{ 2 }\), \(\frac { z + 3 }{ 2 }\)) = (1, 3, 5)
\(\frac { x + 1 }{ 2 }\) = 1, \(\frac { y + 6 }{ 2 }\) = 3, \(\frac { z + 3 }{ 2 }\) = 5
x = 2 – 1, y = 6 – 6, z = 10 – 3
x = 1, y = 0, z = 7
∴ Coordinates of T = (x, y, z) = (1, 0, 7)
Hence, coordinates of image of point
P(1, 6, 3) = T(1, 0, 7).

Section – E
This section comprises of 3 case-study/passage-based questions of 4 marks each with two sub-parts. First
two case study questions have three sub-parts (i), (ii), (iii) of marks 1, 1, 2 respectively. The third case study question has two sub-parts of 2 marks each.)

Question 36.

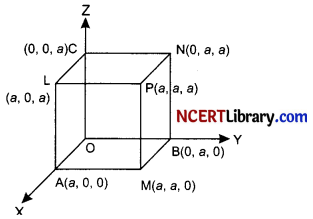

A Badminton Hall is to be constructed in the form of a cube in a sports complex in the 3-D as given below:

Length of side of cube be a unît four diagonals are OP. MC, AN and BL.
From the above information given answer of the following questions:
(i) Write the direction ratios of the side of the room of Z – axis.
(ii) Write the Cartesian equation of the side of the room BN.

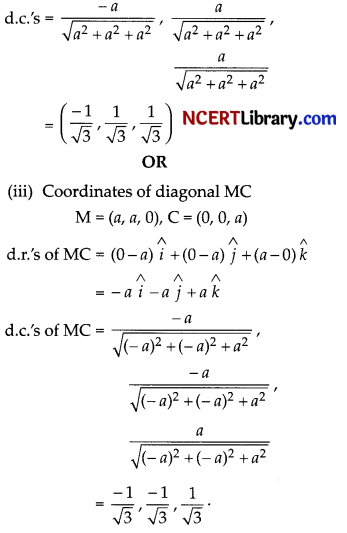

(iii) Find the direction cosines of diagonal AN.

OR

(iii) Write the direction cosines of diagonal MC.
Solution:
(i) Direction ratios of Z – axis = (0, 0, a).

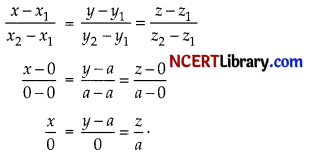

(ii) Cartesian equation of side BN where B(0, a, 0), N(0, a, a) is

(iii) Directions ratios of diagonal \(\vec{AN}\) = \(\vec{ON}\) – \(\vec{OA}\)
\(\vec{ON}\) = 0 \(\hat{i}\) + a\(\hat{j}\) + a\(\hat{k}\)
\(\vec{OA}\) = a \(\hat{i}\) + 0\(\hat{j}\) + 0\(\hat{k}\)
\(\vec{AN}\) = (x₂ – x₁)\(\hat{i}\) + (y₂ – y₁)\(\hat{j}\) + (z₂ – z₁)\(\hat{k}\)
= (0 – a)\(\hat{i}\) + (0 – a)\(\hat{j}\) + (a – 0) \(\hat{k}\)
= a\(\hat{i}\) – a\(\hat{j}\) + a\(\hat{k}\)
d.r.s = <-a, a, a>

Question 37.
Two friends Raja and Rahul are standing on a point O from where they started to move in different directions with the position vector of 2 \(\hat{i}\) – \(\hat{j}\) + \(\hat{k}\), \(\hat{i}\) – 3\(\hat{j}\) – 5\(\hat{k}\) respectively. Raja reaches to his office at point A and Rahul reaches his client office at point B which are opposite to each other. They decided to meet at a coffee shop situated on the way of AB coffee shop divided the road AB in the ratio of 2: 1.

Give answers of the following questions:
(i) How much distance is covered by Raja to reach his office ‘A’?
(ii) What is the distance between Rahul’s starting point and terminating point?
(iii) What is the distance between Raja’s office and Rahul’s client office?
OR
(iii) What are the coordinates of the point of coffee shop?
Solution:
\(\vec{OA}\) = 2\(\hat{i}\) – \(\hat{j}\) + \(\hat{k}\)
|\(\vec{OA}\)| = \(\sqrt{2^2+(-1)^2+1^2}\)
= \(\sqrt{4+1+1}\) = \(\sqrt{6}\) units

\(\vec{OB}\) = \(\hat{i}\) – 3\(\hat{j}\) – 5\(\hat{k}\)
Distance covered by Rahul is
|\(\vec{OB}\)| = \(\sqrt{1^2+(-3)^2+(-5)^2}\)
= \(\sqrt{1+9+25}\) = \(\sqrt{35}\) units

(iii) Distance between Raja’s office and Rahul’s client office will be |\(\vec{AB}\)|
\(\vec{AB}\) = \(\vec{OB}\) – \(\vec{OA}\) = (\(\hat{i}\) – 3\(\hat{j}\) – 5\(\hat{k}\)) – (2\(\hat{i}\) – \(\hat{j}\) + \(\hat{k}\))
= – \(\hat{i}\) – 2\(\hat{j}\) – 6\(\hat{k}\)
|\(\vec{AB}\)| = \(\sqrt{(-1)^2+(-2)^2+(-6)^2}\)
= \(\sqrt{1+4+36}\) = \(\sqrt{41}\) units

OR

(iii)

\(\vec{OC}\) = x\(\hat{i}\) + y\(\hat{j}\) + z\(\hat{k}\)

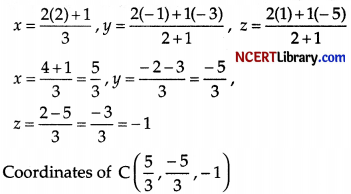

Which divides BA in the ratio 2 : 1. By section formula, coordinates of C will be:

Question 38.
A firm produces three products P₁, P₂ and P₃ requiring the mix-up of three materials M₁, M₂ and M₃. Per unit requirement of each product for each material (in units) is represented by matrix A as follows:

The per unit cost of material M1, M2 and M3 is ₹5, ₹10 and ₹5 respectively.

(i) Find the total requirement of each material for 100 units of each product.
(ii) Find per unit cost of production of each product as per unit cost of material given above.
Solution:
(i) The total requirement of each material is given by AB.
